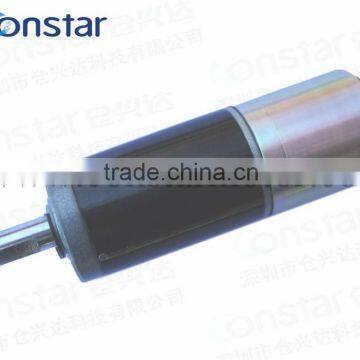

22mm 12V DC roller shutter motor
Negotiable
/ Piece
10 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen or HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Constar | |
| Model Number | GB2236R001-66-2224RK001 | Usage | Other, roller shutter and more | |
| Certification | CE, ROHS | Type | Gear Motor | |
| Torque | 200mNm | Construction | Permanent Magnet | |
| Commutation | Brush | Speed(RPM) | 90rpm | |
| Continuous Current(A) | 500mA | Voltage(V) | 12V |
Product Description
Specifications
DC roller shutter motor Motor with Metal Planetary gearbox,Low speed,
High torque,
Low noise
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -10~+60°C; 15~90%RH
3.Characteristics:
Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) | Max Torque (mNm) | Reduction Ratio | |
GB2236R001-66 -2224RK001 | φ22*30.0 | 12 | 120 | 45 | 200 | 90 | 500 | 850 | 1/66 | |
4.Options: Lead wires length, shaft length, special coils, gearheads,Encoder
