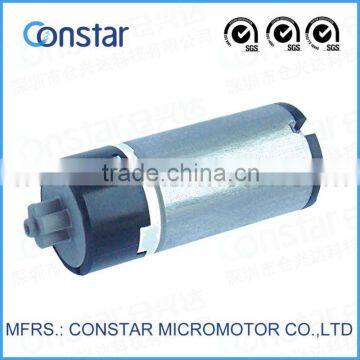

5V 12mm planetary gear micro motor,75rpm electric motor speed reducer
Negotiable
/ Piece
1 Piece(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen or HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
5V dc motor for toy car,5V electric motor with reduction gear
-
12mm 3V toy helicopter motor,dc 90rpm low speed electric reduced motor geared
-
12mm 3V toy helicopter motor,dc low rpm electric motor geared
-
2.5v dc gear motor specifications,worm gear motor,reduction geared motor
-
6~22mm dc differential gear motor
-
used in robot of 12mm 3v dc plastic gear motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | CONSTAR | |
| Model Number | GH1208RC-1230R004-5.0 |
Product Description
Specifications
gear motorGood quality;
Low noise;
Low speed;
Good compacted.
1. Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2. Operating Environment: -10~+60°C; 15~90%RH
3. Characteristics:
Standard Size Series | Voltage (V) | Terminal resistance (Ω) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) | Max Torque (mNm) | Reduction ratio |
GH1208RC -1230R004-5.0 | 5 | 7.5 | 86 | 70 | 19.6 | 75 | 160 | 137.2 | 1/120 |
4. Options: Lead wires length, shaft length, special coils, gearheads
