1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor
USD $2 - $100
/ Piece
10 Pieces(Min. Order)
- Shenzhen or HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4-10mm mini vibrating dc coreless motor for sex toys , sex toy vibration motor
-
12*20mm 3v small precision high rpm electric motor,DC coreless micro motor
-
12V 16mm low voltage graphite brush micro dc electric coreless motor
-
6mm 3V--6V micro coreless dc motor
-
30mm Graphite Brush small Coreless DC Motor for medical
-
24V 25mm 2440rpm performance stable coreless motor,graphite brush slotless dc motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Constar | |
| Model Number | 1718RCN | Usage | Home Appliance, Other, Home Appliance, medical,health care and industrial automation.toy airplane | |
| Certification | CE, ROHS | Type | Micro Motor | |
| Torque | 2.2mNm | Construction | Other, precious metal commutation | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 10280rpm | Continuous Current(A) | 927mA | |
| Output Power | 1.85W | Voltage(V) | 3.0V | |
| Efficiency | Other, * |
Product Description
1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -10~+60°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
Series | Performance Code | Commutation Structure | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) |
1718RCN
| 35-3.0 | Precious Metal | Φ17*18 | 3 |
1.2 | 10280 | 30 | 2.75 | 6550 | 927 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder.
5,Outline Drawing:

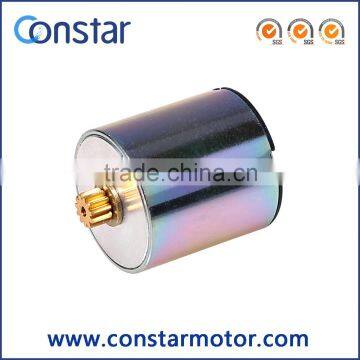

6,Photo:
7,Other Item:
1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor
