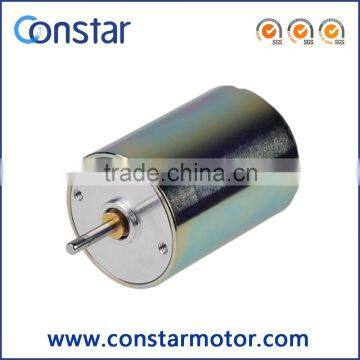

22mm electric 6 volt dc motor
USD $1 - $40
/ Piece
10 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen or Hongkong
- T/T L/C D/P D/A Credit Card
You May Like
-
8mm high speed micro dc coreless motor,toy airplane motor
-
New 6x10mm DC1.3-3V Micro Coreless Vibrating Vibrator Vibration DC Motor
-
1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor
-
4-10mm mini vibrating dc coreless motor for sex toys , sex toy vibration motor
-
12*20mm 3v small precision high rpm electric motor,DC coreless micro motor
-
12V 16mm low voltage graphite brush micro dc electric coreless motor
Product Details
| Place of Origin | China | Brand Name | Constar | |
| Model Number | 2232RCN | Usage | Boat, Home Appliance, Other, Boat, Home Appliance, health care and industrial automation | |
| Certification | CE, ROHS | Type | Micro Motor | |
| Torque | Requests | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 5700RPM | Continuous Current(A) | 0.41A | |
| Output Power | * | Voltage(V) | 6V | |
| Efficiency | IE 1 |
Product Description
22mm electric 6 volt dc motor
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -10~+60°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
Series | Performance Code | Commutation Structure | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) |
2232RCN | 1-6.0 | PrecisionMetal Brush | Φ22*32 | 6 | 4.9 | 5700 | 15 | 9.93 | 3820 | 413 |
|
|
|
|
|
|
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder
5,Outline Drawing:
,
6,Other Item:
