FeCrAl Wire Mesh Screen
- Shanghai FeCrAl Wire Mesh Screen
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Material | Other, fecral wire | |
| Type | Weave Wire Mesh | Application | Woven Wire Mesh | |
| Weave Style | Dutch Weave | Wire Diameter | 0.1mm-10mm | |
| Technique | Woven | Model Number | FeCrAl Wire Mesh Screen | |
| Brand Name | fengshan |
Product Description

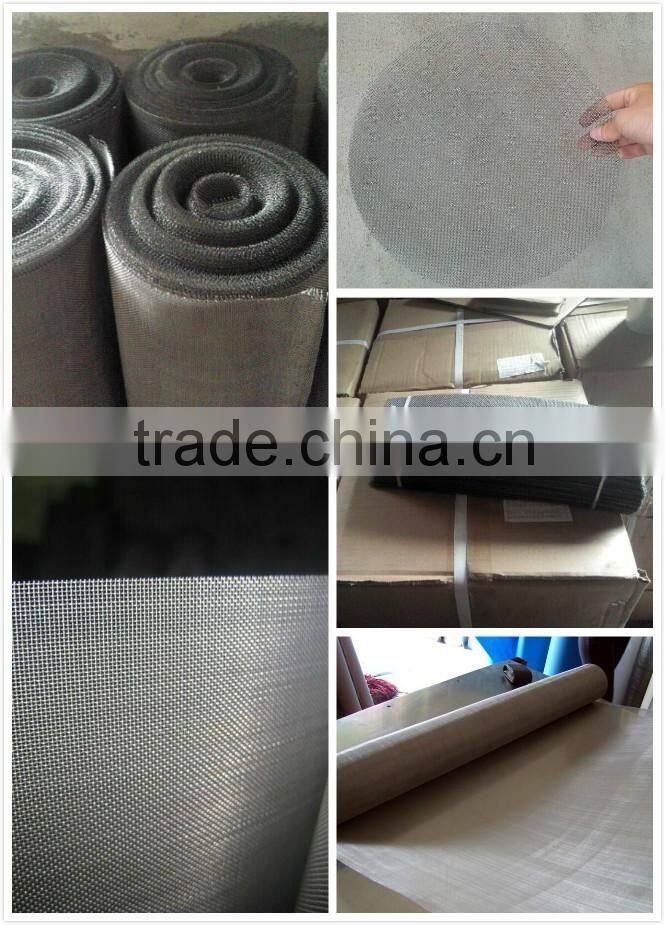

FeCrAl Wire Mesh Screen
Material composition
1.FeCrAl : OCr13Al4,OCr19Al3,OCr21Al4,OCr20Al5,OCr25Al5,OCr21Al6,OCr21Al6Nb,OCr27Al7Mo2.
2.Nickel chrome : Cr25Ni20,Cr20Ni35,Cr15Ni60,Cr20Ni80.

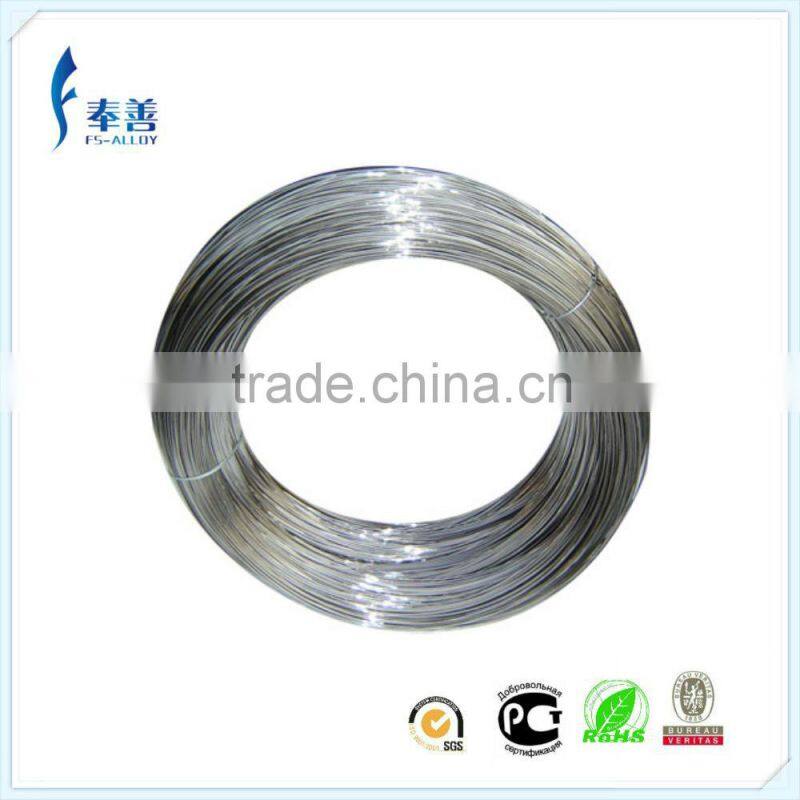

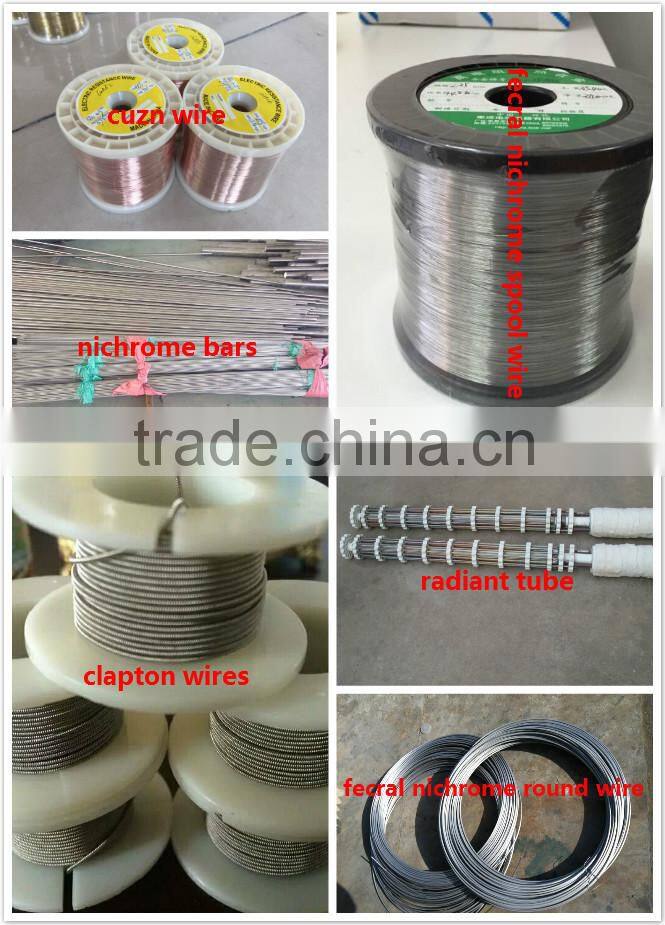

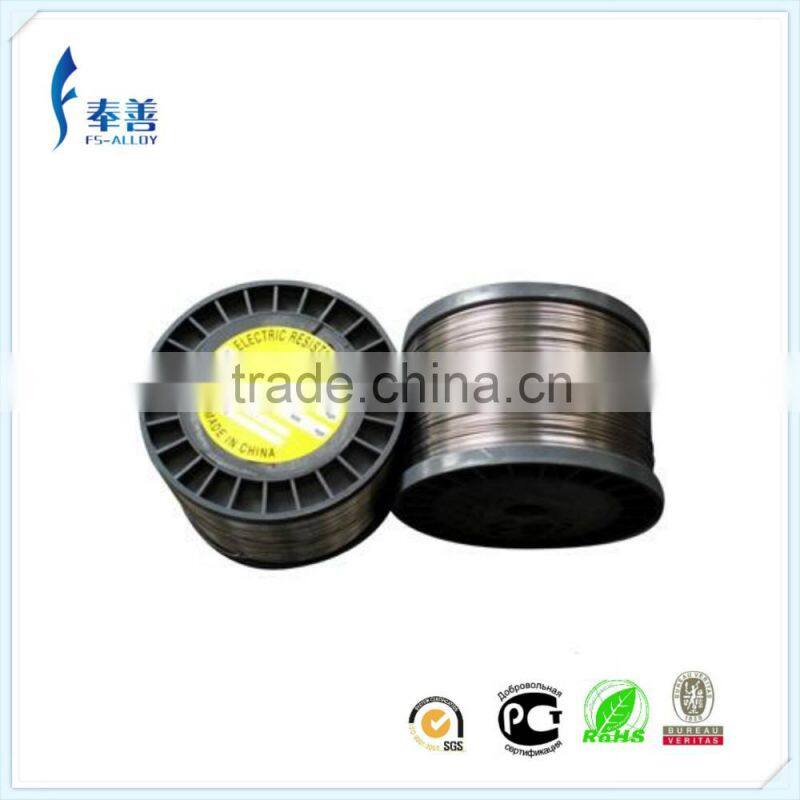

Wire pictures
Main Property of nichrome wire
Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 | |
Density(g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
Coefficient of lines expansion(α×10-6/ºC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
Size
wires:0.018-10mm Ribbons:0.05*0.2-2.0*6.0mm
Strips:0.5*5.0-5.0*250mm Bars:D10-100mm

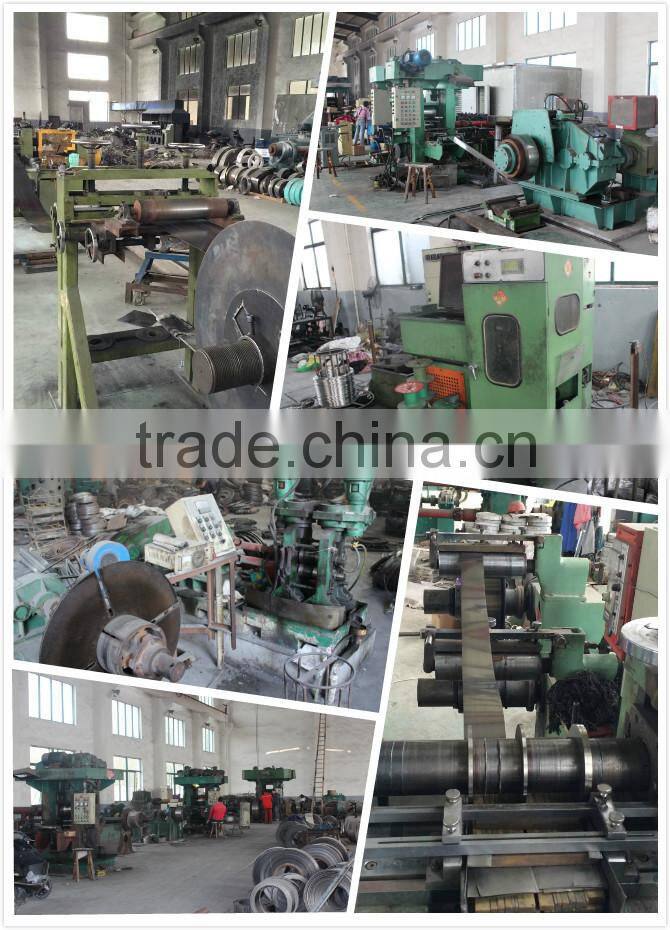

Our company workshop and working machine

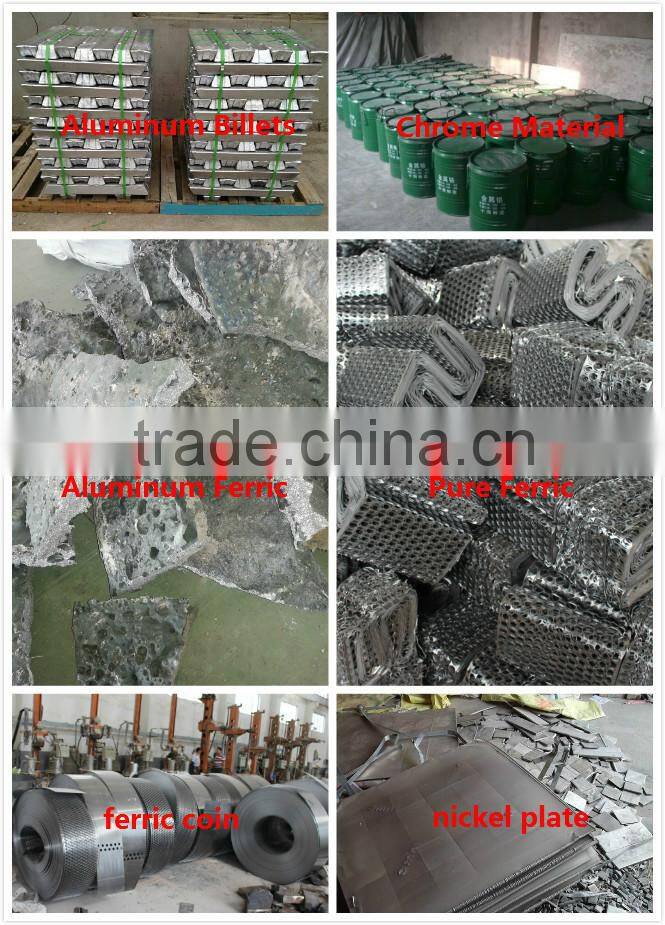

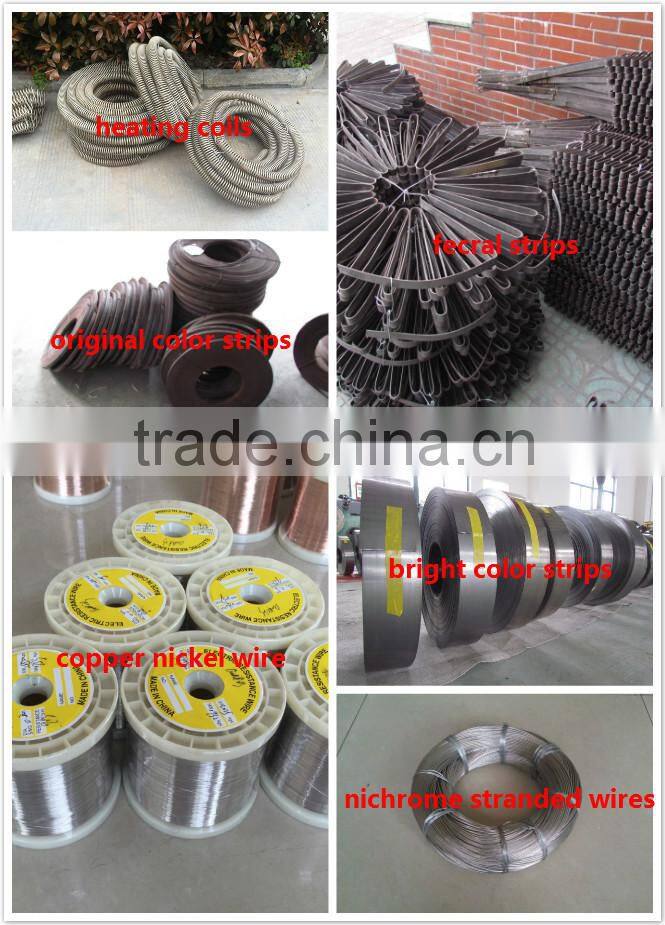

Our Raw Marerial

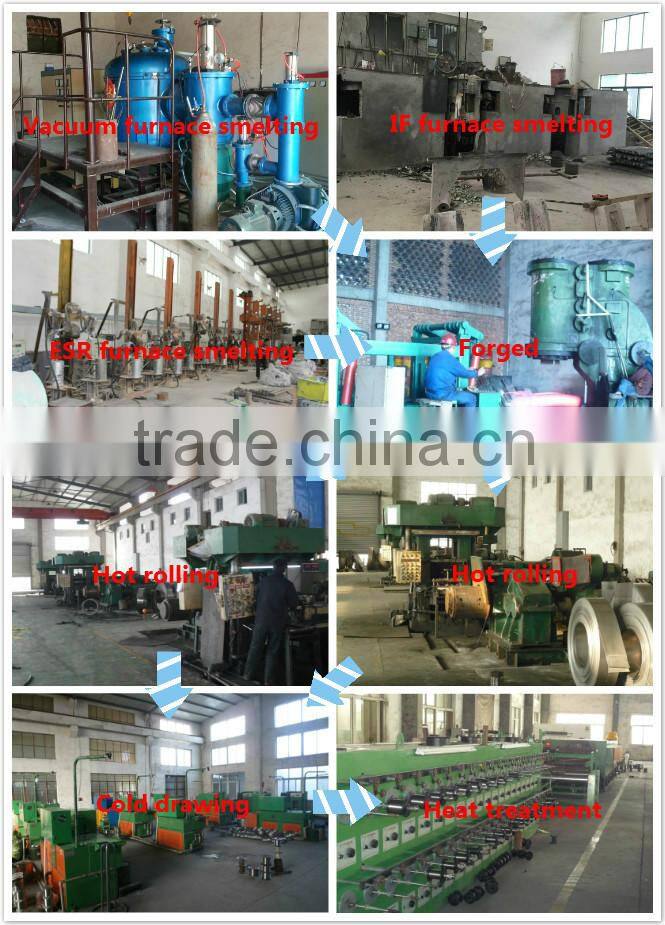

Production process

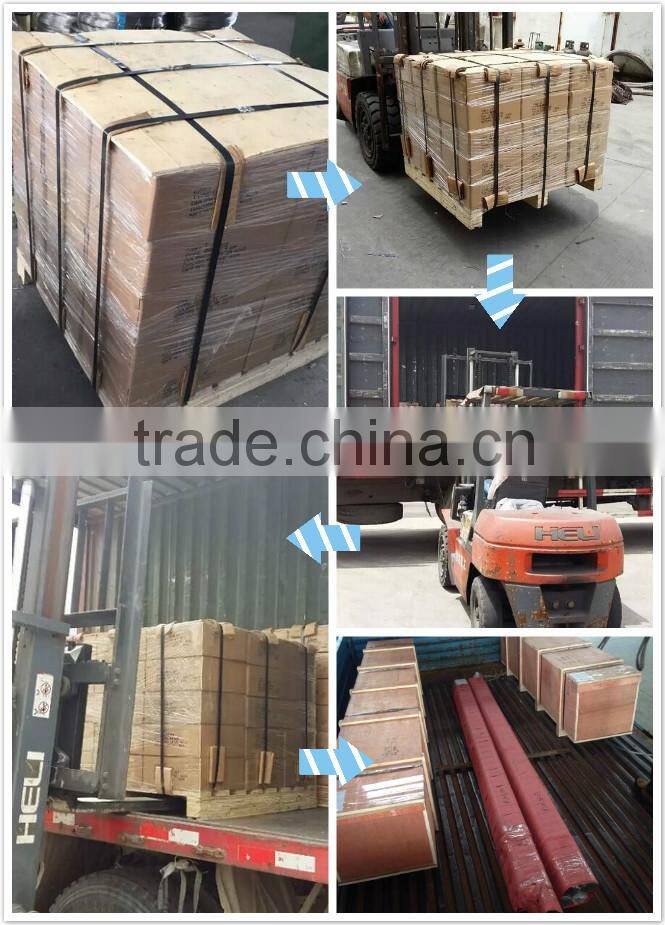

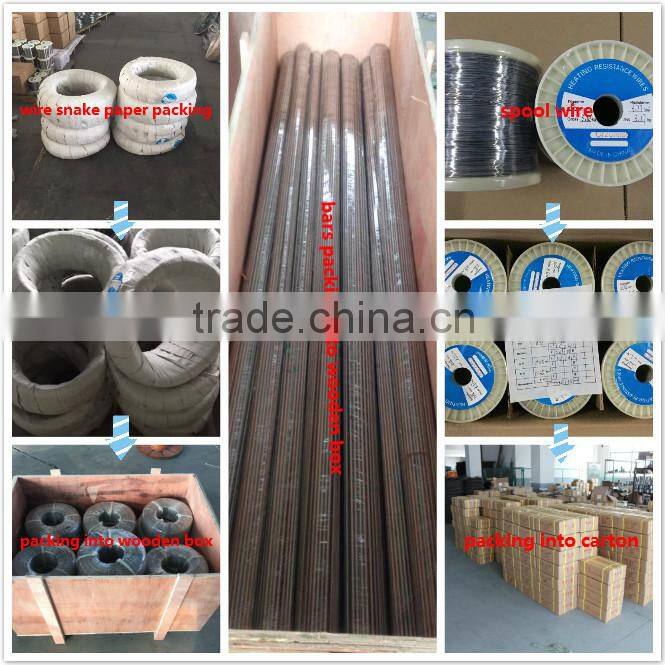

Packing Pictures
Shipping Pictures

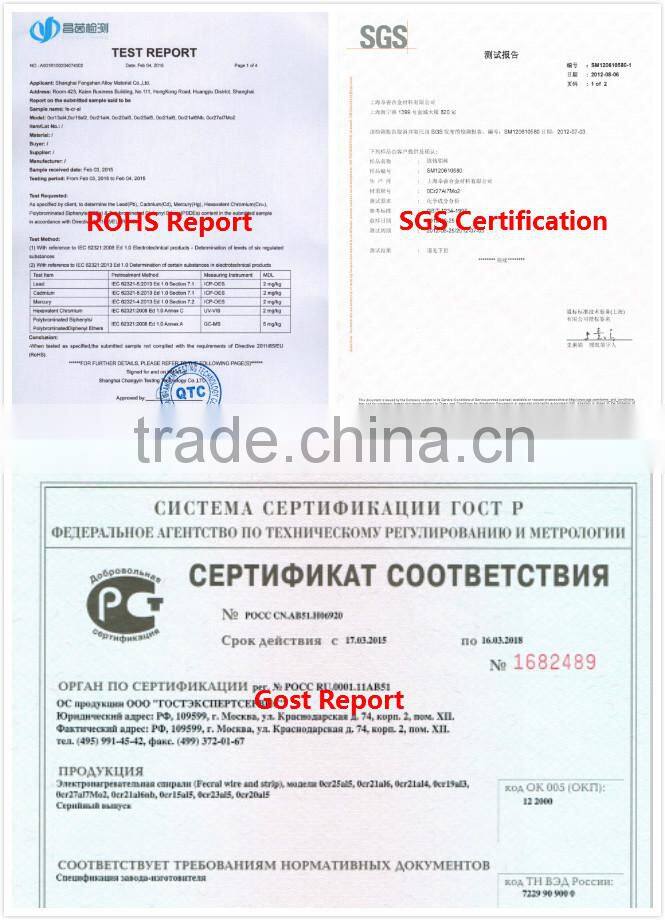

Certifications
Our Service
1. fine after-sale services
2.small order accepted
3.samples available
Product forms avaiable are:
- Round wire
- Ribbon (flat wire)
- Strip / foil
- Stranded wire
- Sheet / plate
Delivery conditions are:
- Bright annealed
- Oxidized
- Pickled
- Enameled
About our company
1.Shanghai Fengshan alloy material Co., Ltd specialized in produce of high resistance wire,nickel chromium heating wire,iron chromium aluminum heating wire,flat wire,stainless steel wire and so on.The products are widely used in industrial electric furnace heating equipment and civil heating appliance,automobile exhaust purification metal honeycomb carrier,high-speed locomotive brake, lifting motor brake electric voltage regulator,diamond heating element and so on.
2.Our company has more than 14 experiences in alloy material areas,with high quality and reasonable price.Our products mainly exports to middle east like Yemen,Saudi Arabia,Iran,Libya and so on.
Our company picture
Q: Are you a manufacturer?
A: We are a manufacture factory which located in Taizhou City,Jiangsu Province,have our own producing department and sales department.
Q: Concerning the supply ability of factory?
A: About 10 tons of wire or strip per month.
Q: Technical supports?
A: We have our own development team for new project and professional technicial team.
Q: How do you ensure quality?
A: We have QC who are reponsible for tracking and monitoring for whole production process.
Accept customers' testing.
Q: What kind of logistics system do you have?
A: We cooperate with large shipping company, for instance, CO,SCO, MSK, MSC, APL (U.S.) with
perfect distribution center to make sure the goods into customers in time.
