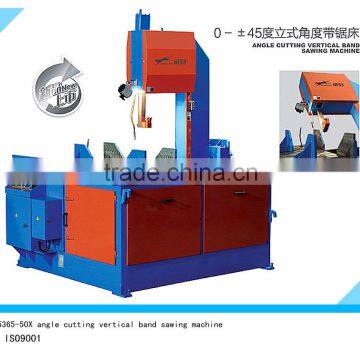

0-45 degree angle large vertical band saw GV5365-50X

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	WEILISHI	Model Number	GV5365-50X
Rated Power	4KW	Dimension(LWH)	220024002700mm
Weight	3400KGS	Certification	CE
Warranty	ONE YEAR	After-sales Service Provided	Engineers available to service machinery overseas

0-45 degree angle large vertical band saw GV5365-50X :

MACHINE NUMBER: GV5365-50X

Item NO:	GV536550X
Maximum Cutting Capacity	0°	square size: 650*500mm ; round size Φ500mm
	±45°	square size: 500*500mm ; round size: Φ500mm
Saw blade	Size	5450341.1mm
	Tension	manual
	Guide	TINGS CARBIDE
	Cleaning	brush
Motor Output	4KW
Woking method	The working table is moving while the saw beam is stable
N.W		3400KGS
Size(LWH)		220024002700mm
Standard Accessories		Bi-metal saw blades,tool box,manual instruction,feeding table

Main features of the large vertical sawing machine:

1. the vertical sawing machine blade and work piece at a 45-degree angle

2. the length of cutting workpiece is not limit

3. tension form: hydraulic

4. working table can be automatic flexible

5. the vertical sawing machine blade speed adopts the VVVF stepless

6. hydraulic control rise and fall of upper bracket

7. infrared tool setting

8. oil return cooling system

9. chip removing system can be added

10. belt breakage warning devices

Zhejiang Weilishi Machine Co., Ltd.: Contact namelu lu
Chat Now; Phone0086-578-3265005; Address18#huaqiang road,huzhen industry zone,jinyun county, Lishui, Zhejiang
