New Type Veterinary Injector Animal Vaccination Syringe With Needle and Bottle

New type veterinary injector animal vaccination syringe with needle and bottle

1. Application method

I. Insert both aspirating needle and vent needle into bottle, connect the aspirating needle with joint by catheter.

II. Rotate adjustment wire to the position from 1ML to 5ML, align ruler line with scale, drive syringe continuously, set the desired dose position after the syringe is full of liquid medicine. You can use it as long as you lock the locking cap.

2. Disinfection method

First, fill the injection syringe with water and then put the syringe into a pot and boil it for about ten minutes before using. (Attention, keep the syringe above the bottom of pot) Pour out the water inside the injection syringe until it is dry.

3. Maintenance method

Use clean hot water to clear the injector for several times until there is no residual water or liquor in the injection syringe. Clean the syringe appearance and store it in dry place.

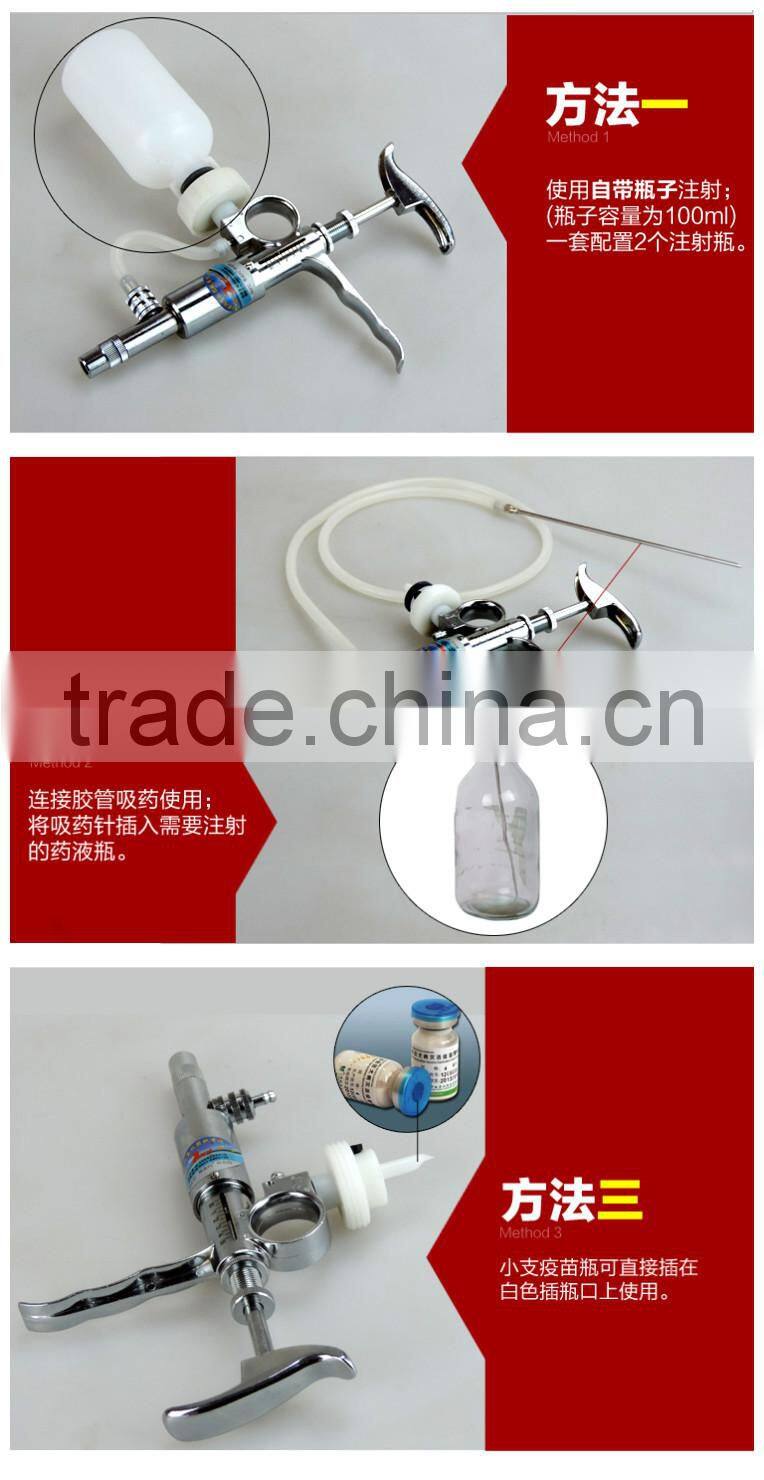

4.Usage method

1.Directly use own bottle(100ml), it bring 2 bottles

2.Connect the suction catheter.

3.Directly insert in the medcine bottle.

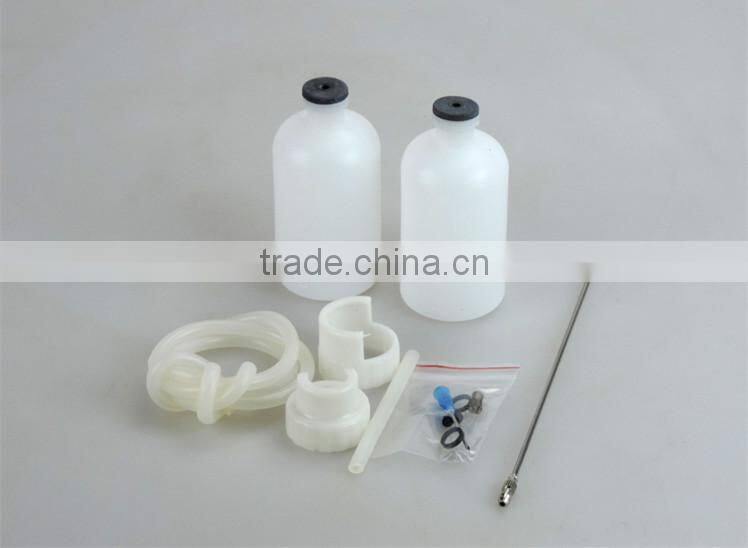

 Attachment

One piece of spirting needle, a piece of vent needle, a catheter, two bottles, a bag of accessories.

 Notice

I. Poor drug absorption phenomena may occur after syringe is placed for a long time. You can deal with that by separating rubber valve from joint or cavity or you can check the rubber valve and clean it.

II. Piston return slow phenomenon may appear after long term use. You can improve it by smearing a little vegetable oil inside the cavity wall or O ring or just changing a new O ring.

III. The seal should be tightened when clean or change the accessories.
