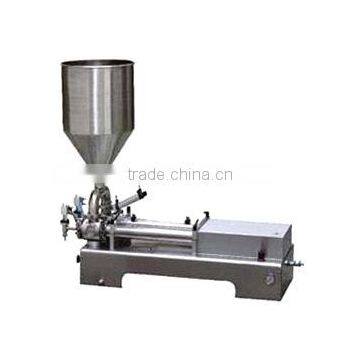

SGF Double Heads Semi-automatic Bottle Filling Machine

SGF Double Heads Semi-automatic Bottle Filling Machine

Introduction

This semi-automatic bottle filling machine is ideal for filling pastes, creams, lotions, gels, and products that have large particulates or chunks. The SGF Series piston fillers can be used to fill thin products as well. This type of piston filler can achieve a maximum fill rate of up to 30 containers per minute. These fillers are all pneumatic and do not require a hopper although they are available. Cleaning is a simple process, no tools are required. Fill volumes are adjustable from 1/8 oz. to 1 gallon depending on the size of the product cylinder and piston

Features

This semi-automatic bottle filling machine is the semi-automatic piston type pasty liquid filling

This semi-automatic bottle filling machine  is reasonable in design, small and exquisite in model, saving the place, the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwans AirTac.

The part contacting materials is made of 316L stainless steel

Both filling volume and filling speed can be adjusted, with high filling accuracy.

Filling head adopts anti-leakage and lifting device.

Main features and technical parameters(This semi-automatic bottle filling machine):

Air pressure 0.4-0.6MPa,

Filling speed 1-30 Bottles/min.,

Filling accuracy ±1%,

Filling range 20-125ml  50-500ml  250-1000ml  500-2500ml
