Rechargeable led solar camping lights portable outdoor solar camping lamp

Rechargeable led solar camping lights portable outdoor solar camping lamp

1)Material

high efficiency solar panel

SANYO's lithium battery

Epistar LED

America imported high CPU

High transparency PC lamp cover

2)Logo registration Obtained PRC states patent for invention, practicability and design.

3)Battery 6V 2200--2800 mah /lamp with over 20 years design life for product and 1000-1500 times discharge and charge time for lithium battery, its enable this solar smart 2 lights with at least 3years lifespan from first date using.

4)Application

widely used in home lighting, camping,rural area place where electricity is hard to reach, also place rebuild after serioius nature disaster like earthquake, Tsunami, Debris flow, etc.

5)Plug string and remote controller making lighting more easier for use.

6)3 kinds of brightness can meet different requirement

7)Main Features:

a) 100% brightness with 300 Lumen light output (equal to 8W CFL bulb or 60W incandescent bulb).

     75% brightness with 225 Lumen light output (equal to 6W CFL bulb or 45W incandescent bulb).

     50% brightness with 150 Lumen light output (equal to 5W CFL bulb or 35W incandescent bulb).

b) 23% efficiency (compared to 1% for incandescent and 5% for CFL).

c) Built-in Energy Storage (65kJ) and management electronics (no need for seperate battery and controller anymore)

  Solar panel plugs in directly to the lamp through a Hub (which provides lighting surge protections)

d) Dimmable from 300-225-150Lumen, and off position by integrated pull-switch

e) Long battery life:

   7,500h @ 11kJ/h (200Lm), equal to 3.4 years @ 6h/day

  15,000h @ 4.5kJ/h (100Lm), equal to 6.8 years @ 6h/day

f) Extremely long life of light-chips:

  20,000h @200Lm, equal to 9 years @ 6h/day

  40,000h @ 100Lm, equal to 18 years @ 6h/day

g) System expandable from 1 lamp to 10 or 100 lamps, simply by adding and connecting

Comparison between Wisdomsolar product with similar product

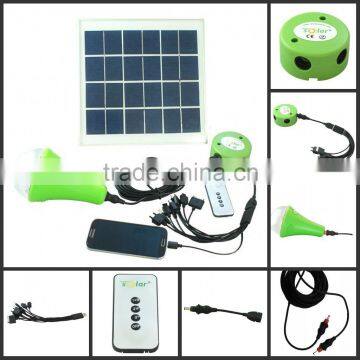

Poduct Structure

a)Solar panel with tilt angle adjustable pole mounting bracket and 5m cable

b)Lamp with pull swith for on-off and dimming

c)Adjustable cord length

d)DC cable with bayonet plugs(5m),ceiling cap and screws

e)Hub4, plug and play interconnection box with additional expansion terminal

f)Remote control make lamp easy to on and off, even if you are far from lamp.

Packing

Battery pack is housed inside each LED lamp, each component pack in one complete strong  box , and inside use with foamed plasticto protect each parts.

detailed drawing

Certificate
