2mm-8mm Exterior Wood Wall Panels,aluminium Composite Material(acm), Aluminium Composite Panel/acp Sheet

FOB Price

US$ 2 - 30 / Square Meter

1000 Square Meters(Min. Order)

Port Ningbo or Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Huawei
Model Number	HP18	Usage	Outdoor
Function	Anti-Static, Antibacterial, Fireproof, Mould-Proof	Surface Treatment	Anodized, Brushed, Mirror, PE Coated, PVDF Coated

Product Description

Specifications

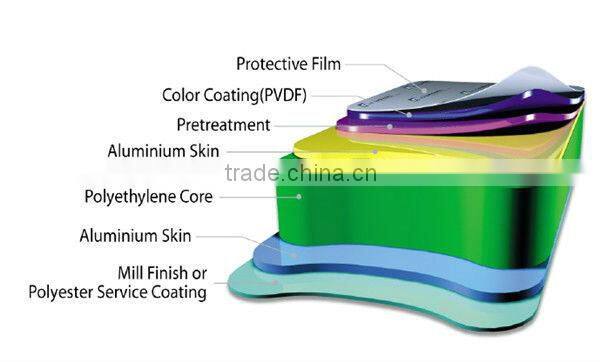

aluminum composite panel(ACP sheet)
1.ACP/ACM,
2.Good Performance,
3.Customized size,
4.Standard Package.

aluminum composite panel(ACP sheet) Exterior wood wall panels
1.ACP/ACM,
2.Good Performance,
3.Customized size,
4.Standard Package.

Anodized ACP panel, mirror finish aluminum composite panel sheet

Name		Aluminium Composite Panel
Brand		Huawei
Thickness of pannel		2mm, 3mm, 4mm, 5mm, 6mm
Thickness of aluminium		0.05mm-0.6mm
Coating		PE & PVDF
Specification	Standard size	1220mm×2440mm
	Non-standard width	1250mm,1500mm,1570mm etc.
Max length		6000mm
Special Size		According to client’s request
Usage Scope	Interior	kitchen Walls ,Curtain walls, ceiling,suspended ceiling etc.
	Exterior	building decoration ,sign,billboard,railway,airpoart etc.
Advantages		Self cleaning property
		Anti-contamination property
		Easy cleaning property
Products standard		GB/T17748-1999

aluminum composite panel(ACP sheet) Feature :

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness ,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

-various uniform colors ,can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

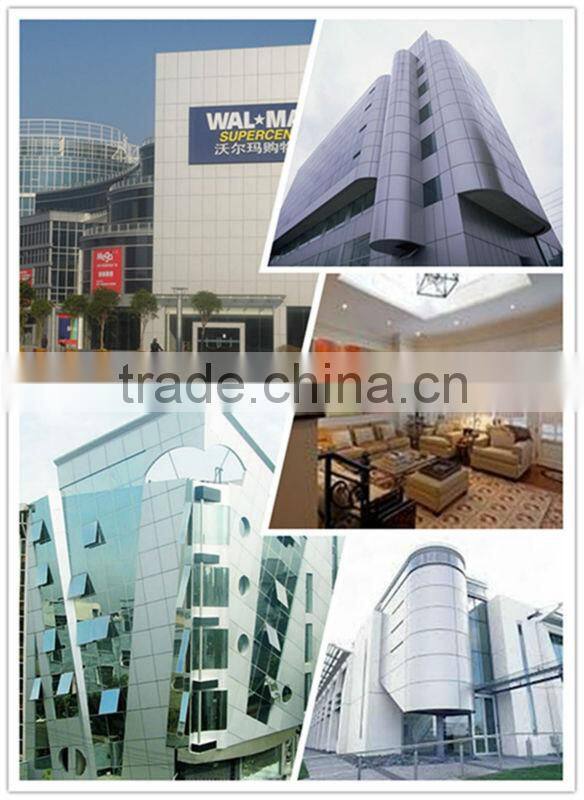

aluminum composite panel(ACP sheet) Applications:

1. Constructional exterior curtain walls;

2.Decorative renovation for storey-added old buildings;

3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

4.Advertisement board, display platforms and signboards;

5. Wallboard and ceilings for tunnels;

6. Raw materials in industrial purpose;

7. Materials used for vehicle and boat.

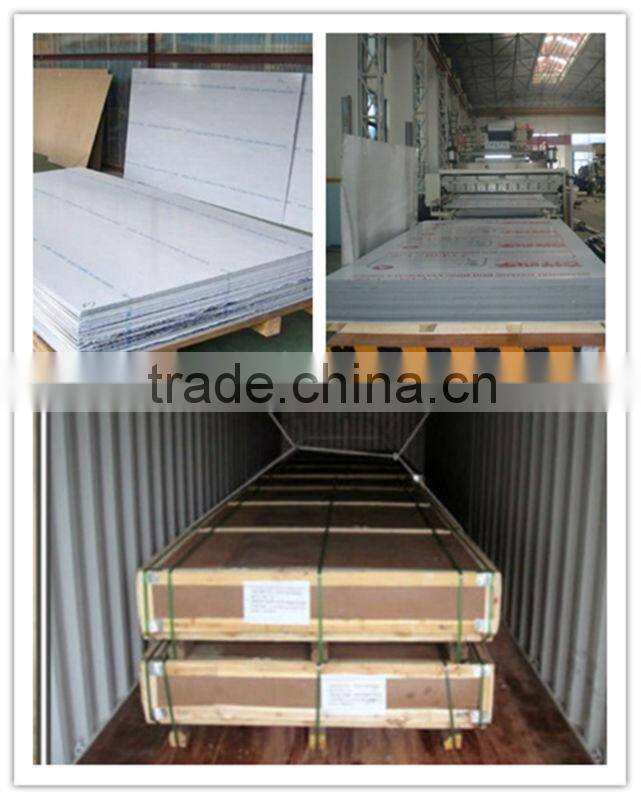

aluminum composite panel(ACP sheet) Package:

Plastic protection film, full container, loading directly bulk cargo with pallets.

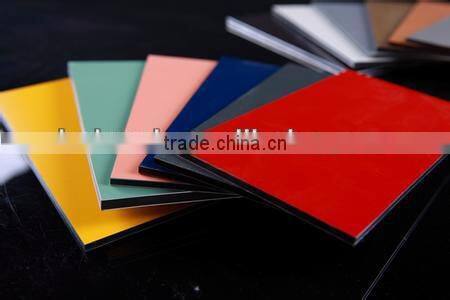

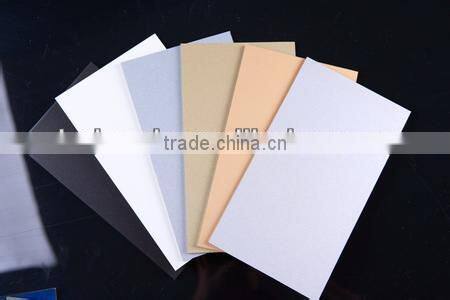

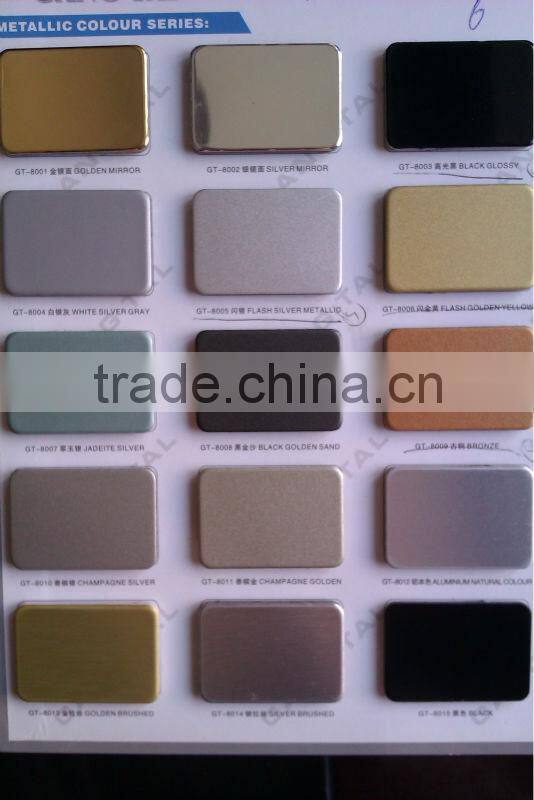

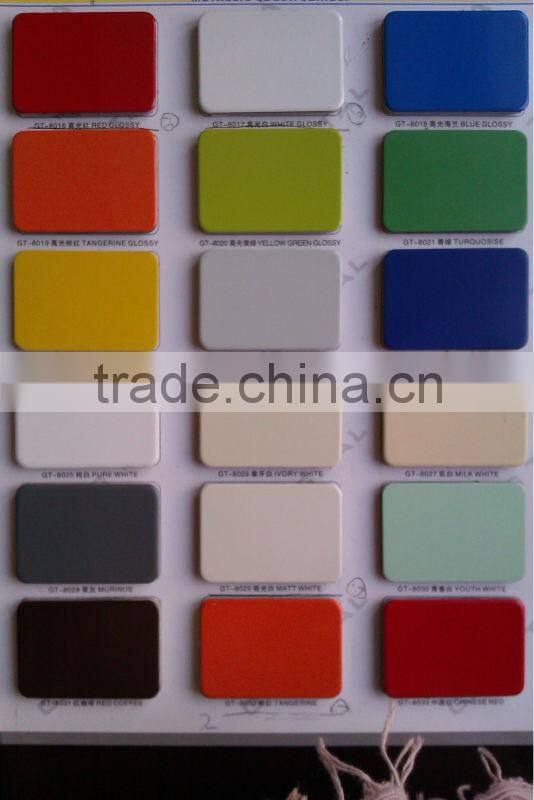

aluminum composite panel(ACP sheet) Colors:

Standard color of RAL and any other colors can be customized at clients' request.

aluminum composite panel(ACP sheet) Surface properties :

Paint Thickness(micron)	Anodize
Pencil Hardness	2H
Toughness Of Coating	2T
Temperature Resistance	-50⁰C+90⁰C
Impact Strength(kg/cm²)	50
Boiling Water Resistance	boiling for 2 hours,No change
Acid Resistance	Immerse surface in 2% HC1 for 24hours,No change
Alkali Resistance	Immerse surface in 2% NAOH for 24hours,No change
Oil Resistance	Immerse surface in 20# engine oil for 24hours,No change
Solvent Resistance	Cleaned 100 times with Dimethylbenzene,No change
Cleaning Resistance	>1000 times no change
Thermal Expansion	2.4mm/m @100⁰C Temp difference
Peel Strength	Average 131N.mm/mm
Bending Strength	>100MPA
Bending Elastic Modules	>2.0*104MPA
Heat Distortion Temperature	>95⁰C

FAQ

1. How to choose the coating kind?

PE coating is always used in inner decoration,while PVDF coating is always used in outer decoration(because it can keep 15 years)
