Home > Products > Aluminium coil > Aluminium Strip for Dry Type Power Transformer Clading

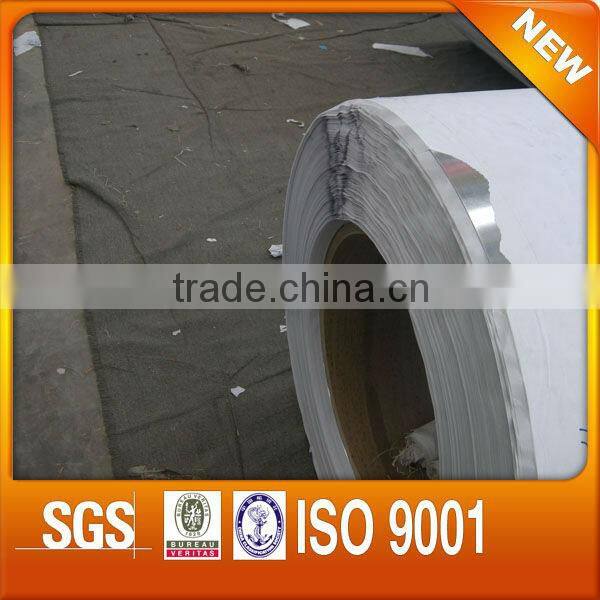

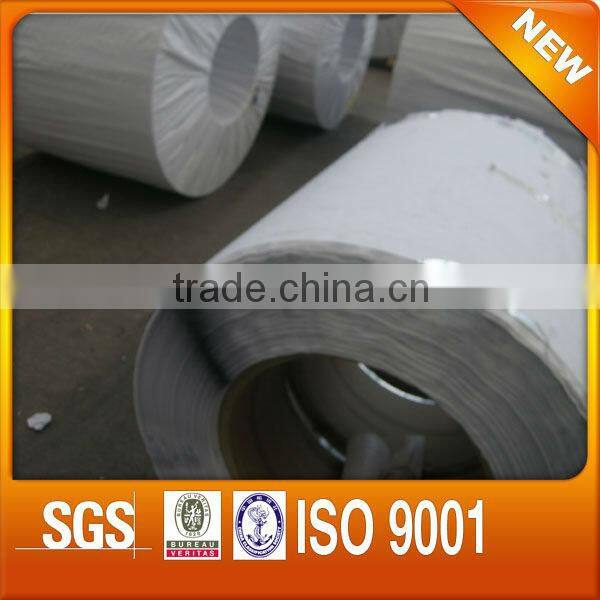

Aluminium Strip for Dry Type Power Transformer Clading
US$ 2,650 - 2,800
/ Ton
1 Ton(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | HW ALU | |
| Model Number | STRIP T | Application | for transformer | |
| Surface Treatment | mill finish | Grade | 1060 | |
| Alloy Or Not | Is Alloy | Al Content (%) | >99.6% | |
| Powder Or Not | Non-powder |
Product Description
Aluminium Strip for Transformer
Alloy: 1060, 1350 (99.6% purity)
Temper: H0 - Soft
Thickness: 0.2mm - 2.5mm
Width: 20-1500mm
Edge: smooth, no cuts, wire edge model
Use: transformers coil manufacturing
Surface quality: clean, without oil pollution and dust, no piebald, crack, raw edges, bubbles, impurities and corrosion, etc
Comparison of VEL material specification and A 1350,A1060
| Parameter | Units | VEL : MS 0125 Spec | A 1350 | A 1060 |
| Thickness | mm | |||
| Conductivity | % of IACS | 61.5 (Min.) | 60 (min) | 61.0(Min) |
| Chemical composition | ||||
| Silicon | % | 0.1 Max. | 0.1 Max. | 0.25 Max. |
| Iron | % | 0.4 Max. | 0.4 Max. | 0.35Max. |
| Copper | % | 0.05 Max. | 0.05 Max. | 0.05 Max. |
| Manganese | % | 0.01 Max. | 0.01 Max. | 0.03Max. |
| chromium | % | 0.01 Max. | 0.01Max | |
| Zinc | % | 0.05 Max. | 0.05 Max. | 0.05 Max. |
| Boron | % | 0.05 Max. | ||
| Gallium | % | 0.03 Max. | ||
| Titanium+Vanadium | % | 0.02 max. | ||
| Other elements each | % | 0.03 Max. | ||
| Other elements total | % | 0.1 Max. | ||
| Aluminum | % | 99.5 Min. | 99.5 Min. | 99.6 Min. |
| Mechanical Properties | ||||
| Tensile Strength | Mpa | 57 to 97 | 60 to 100 | 60-100 |
| Elongation | % | 20 Min. | 25 Min | 20 min.(0.08-0.20mm) 25 min.(0.20-3.00mm) |
