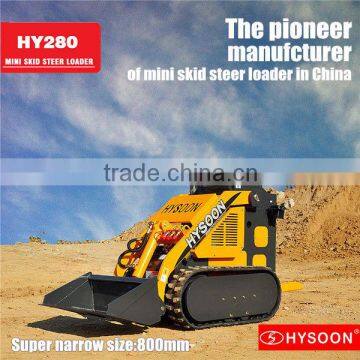

China Cheap HY280 Mini Crawler Loader for Sale
- Qingdao Tianjin Shagnhai Guangzhou and other China port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Brand Name | HYSOON mini crawler loader | |
| Model Number | HY280 mini crawler loader | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Crawler Loader | |
| Dimension(Long * Breadth * High) | 2210mm*800mm*1309mm | Rated Load | 200kg | |
| Certification | CE ,Gost, EPA | Warranty | Engine :3 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China cheap HY280 mini crawler loader for sale
1. HY280 mini crawler loader specification :
CLICK HERE FOR MORE
1.Imported American Briggs&Stratton gasoline engine 23HP
2.Italy pump , Italy servo for optional
3.with rubber track

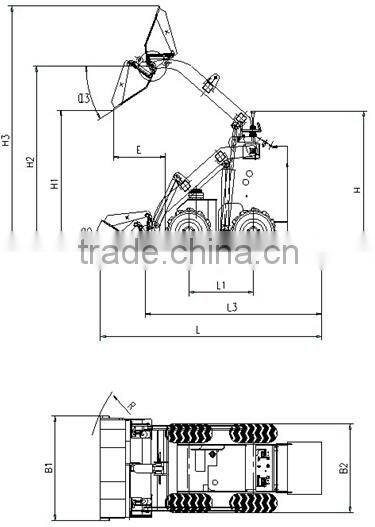

HY280 mini crawler loader main specification
Item | Metric | Inch |
Max working height (H3) | 2065mm | 81.3inch |
Max pin height (H2) | 1803 mm | 71 inch |
Max discharge height (H1) | 1386 mm | 54.6 inch |
The highest unload distance(E) | 471mm | 18.5 inch |
Max angle of unloading(α3) | 32° | 32° |
Retracting angle (α2) | 33° | 33° |
Angle of departure (α1) | 18° | 18° |
Total height(H) | 1309mm | 51.5inch |
The height from the ground(H1) | 123mm | 4.8inch |
wheelbase(L1) | 690 mm | 27.2 inch |
No bucket height(L3) | 1778 mm | 70.0 inch |
Total width (B2) | 800 mm | 31.5 inch |
Bucket width(B1) | 820 mm | 32.3inch |
Total length (L)(with bucket ) | 2210 mm | 87inch |
Turning radius (R) | 1236mm | 48.7 inch |

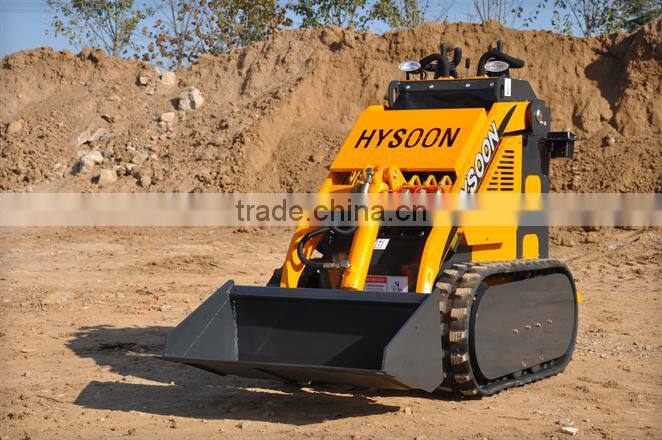

2. HY280 mini crawler loader pictures:
CLICK HERE FOR MORE
HY280 mini crawler loader can do different works by quick change different attachments , like digger , breaker , trencher , 4 in 1 bucket ,fork ,angle blade and so on .

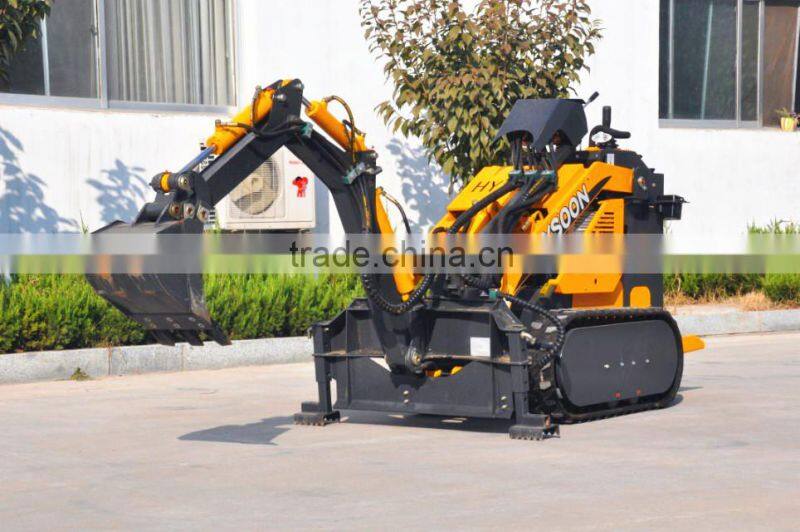

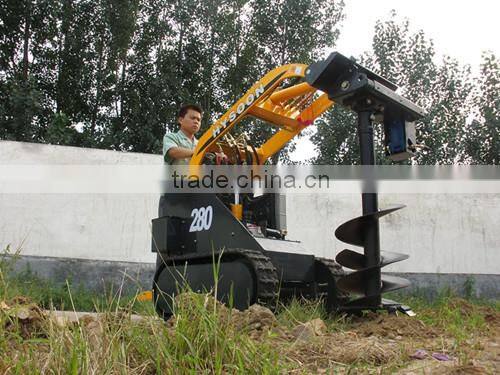

HY280 mini crawler loader with backhoe HY280 mini crawler loader with auger

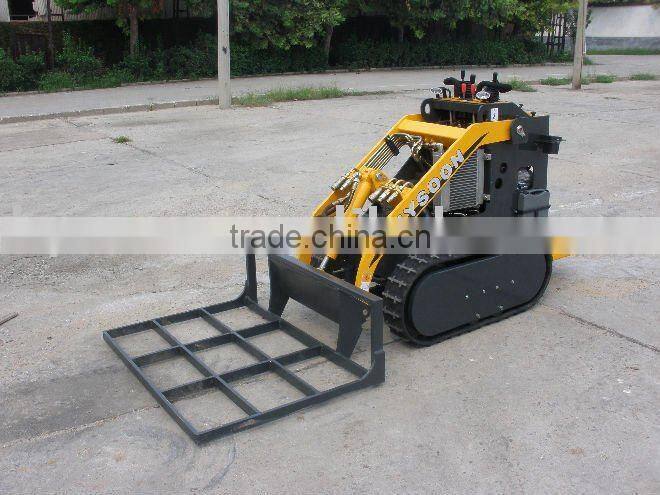

HY280 mini crawler loader with leveler HY280 mini crawler loader with bucket

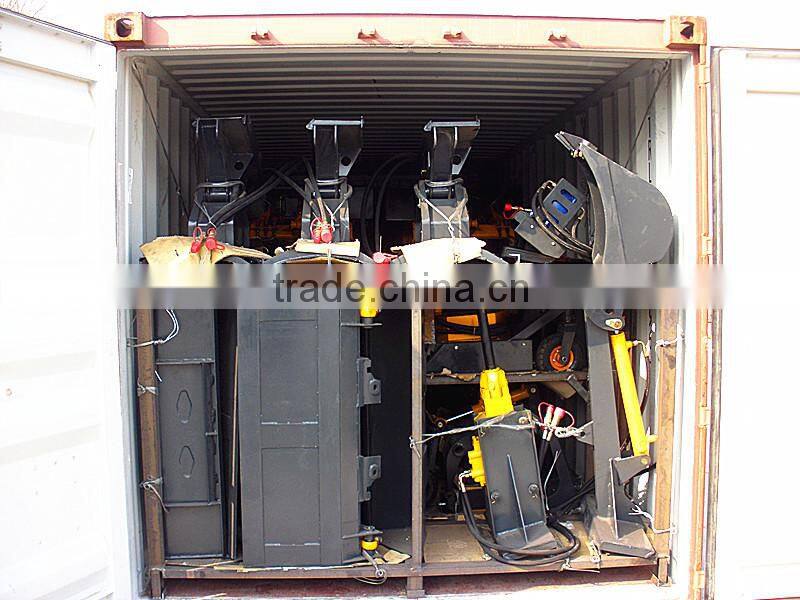

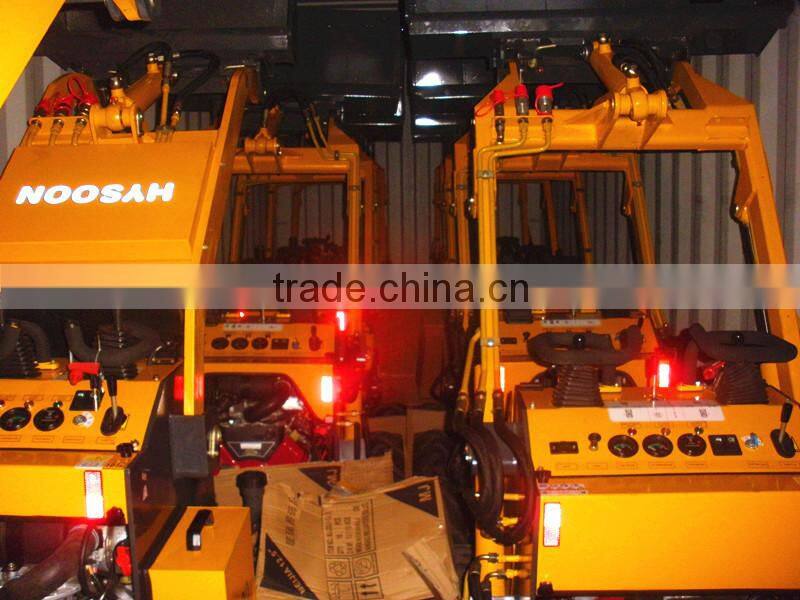

3.Package for HY280 mini crawler loader CLICK HERE FOR MORE

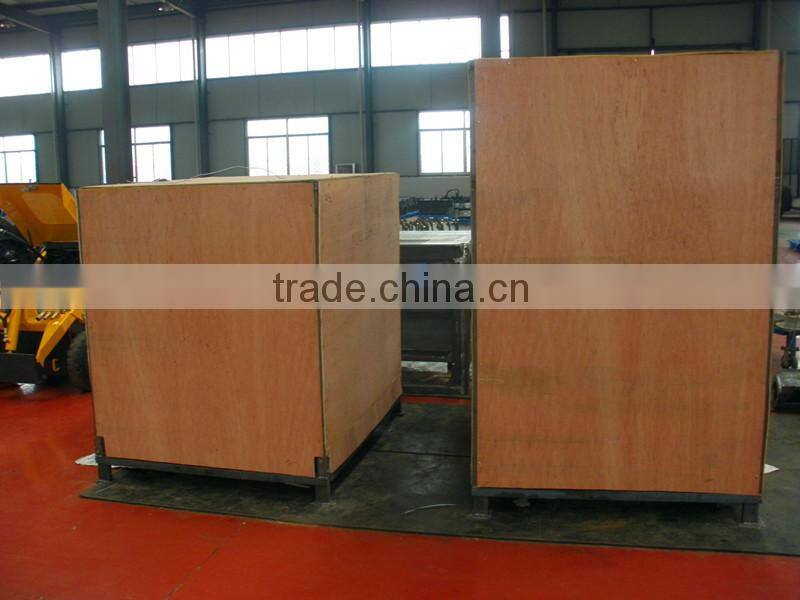

If LCL for HY280 mini crawler loader , use plywood & iron frame package , very strong to protect the products .

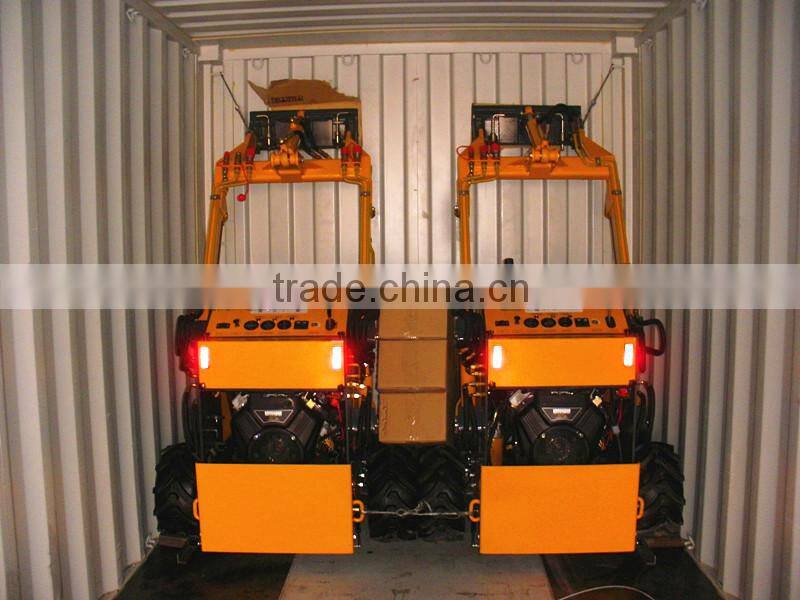

If FCL , direct load into the container

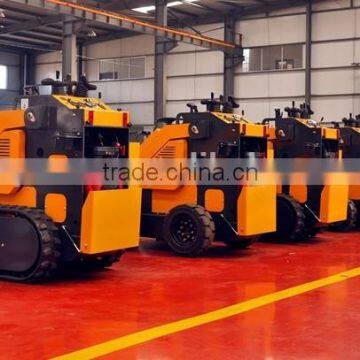

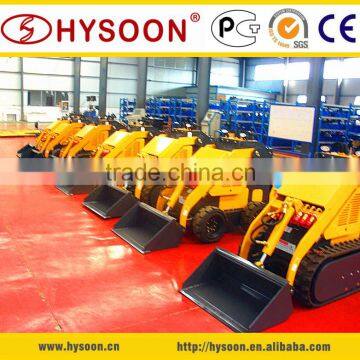

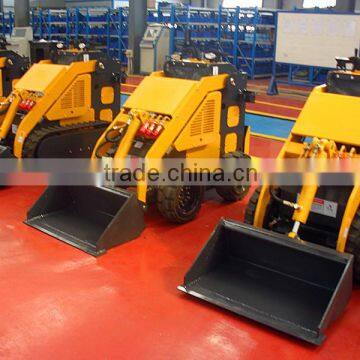

4. Production flow for HY280 mini crawler loader
5. Exhibition for HY280 mini crawler loader
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Our products have won lots customers loved .Following are some pictures :
Warmly Welcome you to visit our factory!
CLICK HERE FOR MORE
