China Electric Articulated Mini Wheel Loader for Sale

FOB Price

US$ 8,000 - 10,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai Ningbo
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	HYSOON
Model Number	HY200 China electric articulated mini wheel loader for sale	Place of Origin	Shandong, China
Type	Mini Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	2424mm970mm2020mm	Rated Load	260kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

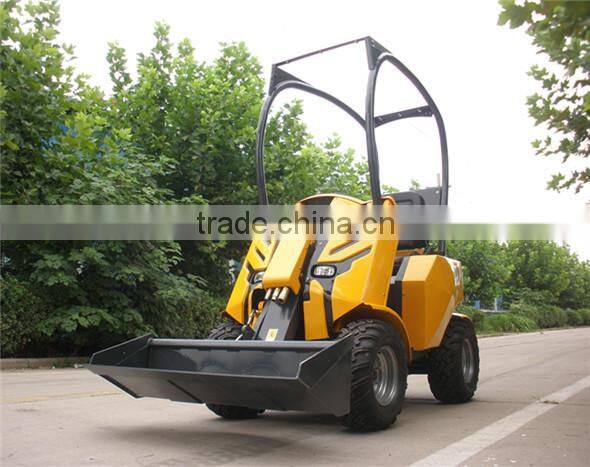

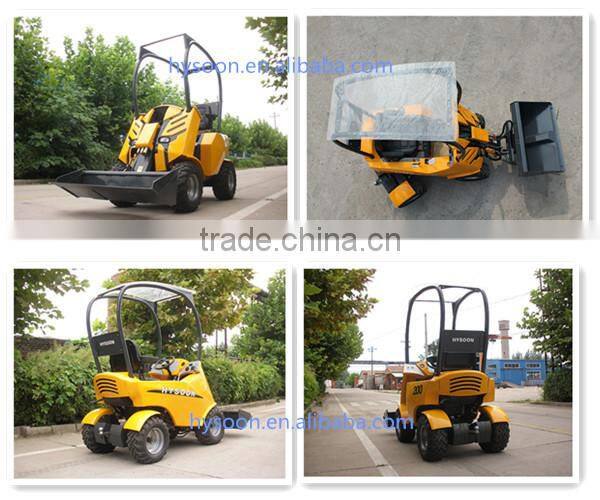

China electric articulated mini wheel loader for sale

Product Description

1. HY200

HY200 is a multifunctional electric or gasoline articulated mini wheel loader for sale, articulated steering chassis, 260kg load capacity, all imported hydraulic parts, elegant design, high working performance. Widely used in garden, manufacturing, recycling, roads, buildings, construction, farms and so on. High performance earth moving machine. Standard configuration is with a standard bucket. Multifunctional attachments for optional.

2. Main Specification:


1)Size
Dimension	2430mm* 1080mm* 2045mm
Length	2430mm
Width	1080mm
Height	2045mm
Bucket Width	1150mm
Max Pin Height	1755mm
Max Dumping Height	1295mm
Max Dumping Distance	430mm
Total Length without Bucket	2015mm
Turn Radius forward Turning	2030mm
2)Engine
Rated Power (KW)	17.15KW(23HP) for gasoline engine 7.5KW for electric type
Type	Gasoline or electric
3)Hydraulic System
Pressure	17Mpa
Operating Load	260kg
Bucket Capacity	0.15m³
Travel Speed	0-8km/h
Weight	900kg
Fuel tank capacity	27.45L
Hydraulic oil tank capacity	21L
Max traction	5KN
Max Lifting force	4.6KN
4)Configuration
Engine	23hp U.S Briggs & Stratton engine / Electric
Pump, Valves, hydraulic system	All Imported Italy brands.
Tires	With Lawn tires, 20*10.00-10P324P/TL
Optional Configuration	Electric type

3. Features
*• Articulated Steering Chassis, hydrostatic transmission* *• Two pedals operating way, driving safety and easily.* *• Ergonomically designed, operation comfortably and safety.* *• Compact dimension can operation in narrow spaces.* *• A loader can for many purposes. Quick hitch system, you can change different attachments for the china articulatd mini wheel loader quickly and easily, then different jobs.*

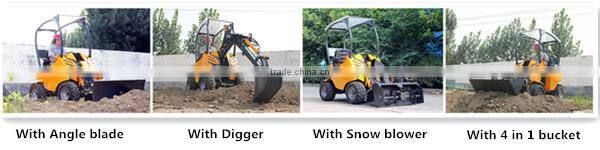

4. Optional Attachments

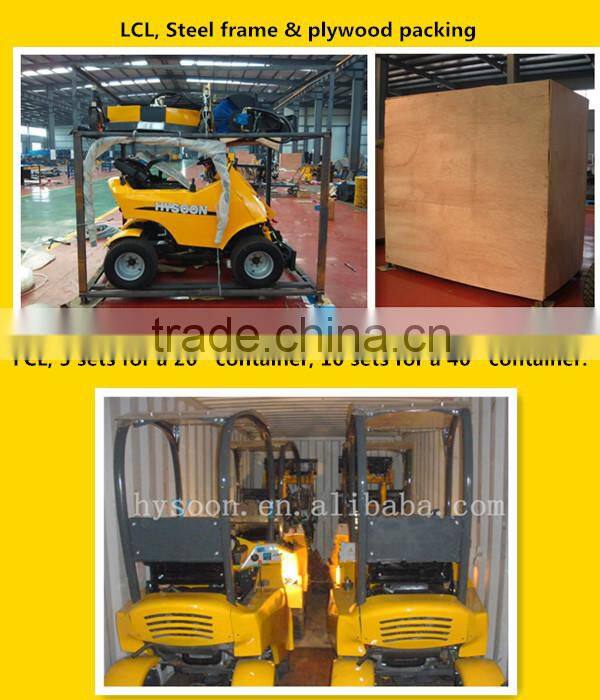

Packaging & Shipping

LCL, steel frame & Plywood packing.

1* 20' Container: 5 sets of HY200 China articulated mini wheel loaders.

1* 40'' Container: 10 sets of HY200 China articulated mini wheel loaders.

Company Information

Certifications: CE, GOST,ISO9001,SGS, Design Patent,Utility Model Patent.

Exhibition&visitors:

FAQ

1.The Reasons you choose us?
1). We are professional top Manufacturer of articulated mini wheel loader in China. 2). Independent of The Design Team, 15 Technical Patents. Accept Your Customization.

3). High Quanlity & Reasonable We Offer Products are Highest Quality.

4). Responsible, in Good Faith. To Guarantee Delivery. Do Security by Alibaba Onetouch.

2. Our Warranty?
1). Warranty: 1 Year. Offer You Accessories for Free in 1 Year Period.
2). Engine Warranty: 3 Years. International Warranty.
3). Provide Technical Support for Life.
3. Do We have Distributors?

Yes. In South Korea. And we are widely recruit Distributors Around the World.
4.Can We Support OEM?

Yes, we can.
