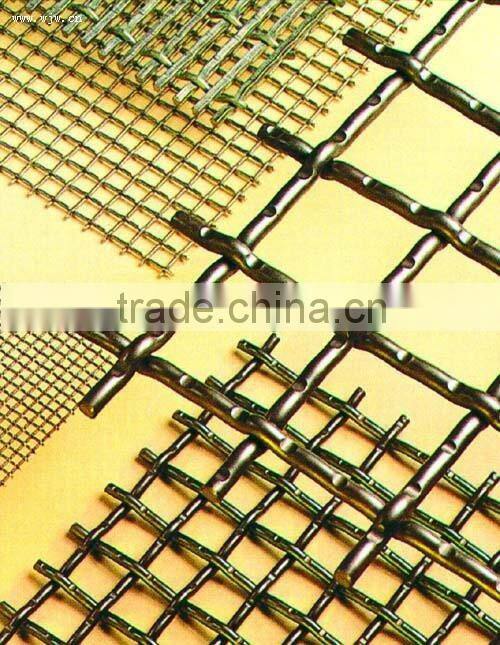

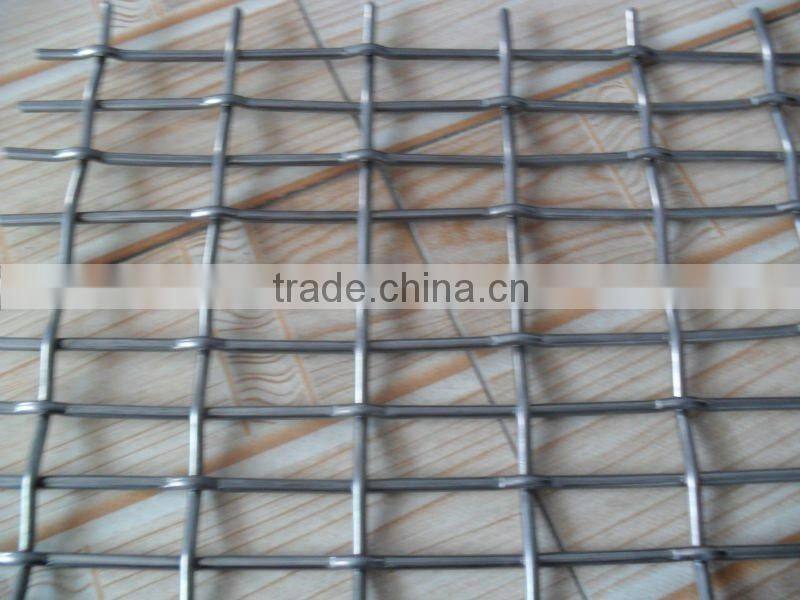

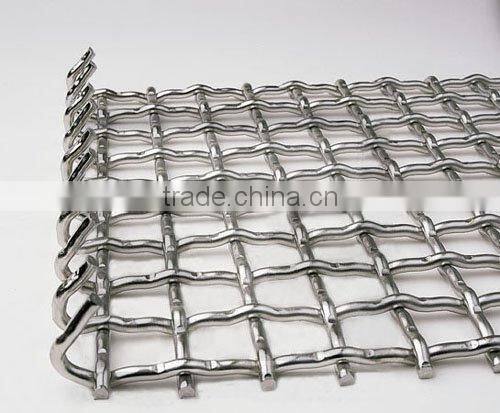

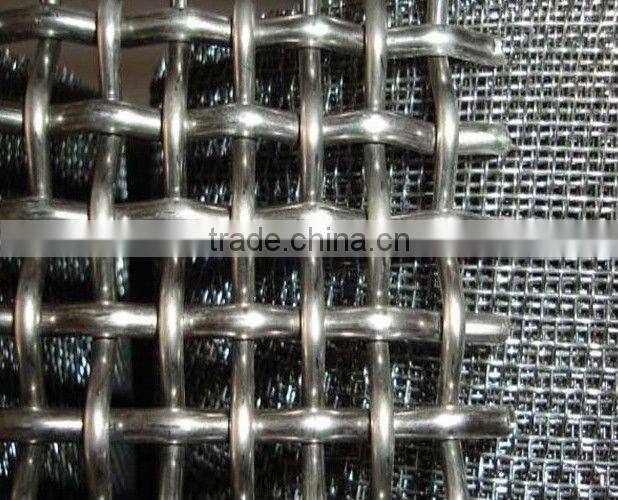

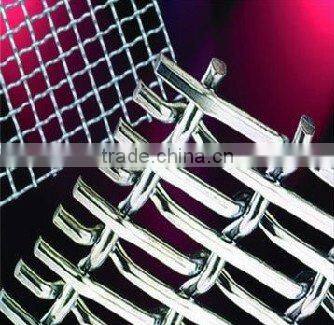

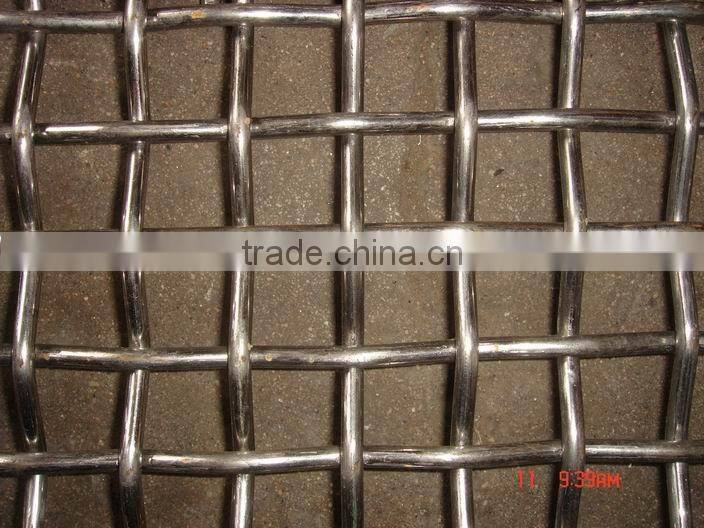

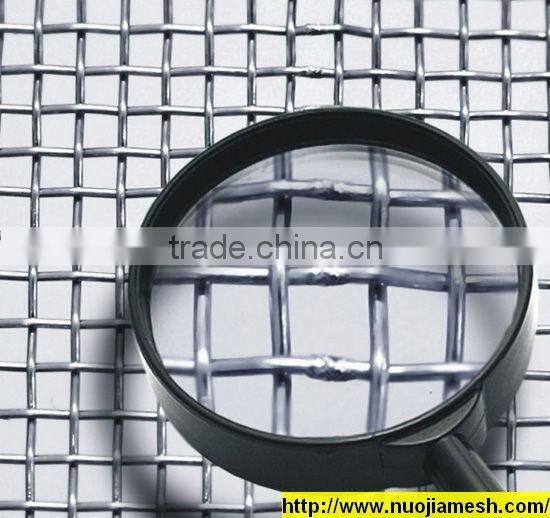

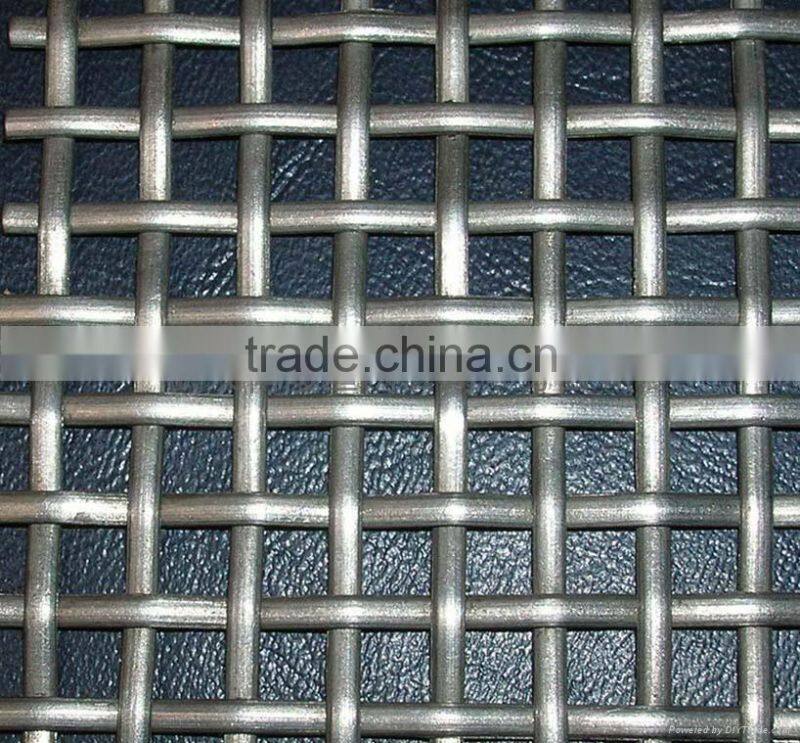

120crimped Wire Mesh ,stainless Steel Crimped Wire Mesh
- tianjinxinggang
- T/T Credit Card
You May Like
-
S.S. Crimped Wire Mesh for Pig Raising/heavy Duty Crimped Wire Mesh
-
Decorative/Filter Brass Mesh(Factory)
-
SNS Flexible Protection Mesh/ground Protect Mesh
-
316 Stainless Steel Mesh Security Screens 10 Mesh Mosquito Proof Window Netting
-
Stainless Steel Mosquito Net
-
Stainless Steel Security Window Screen, Stainless Steel Insect Screen , Stainless Steel Mosquito Net
Product Details
| Place of Origin | Hebei, China | Material | Black Wire Mesh | |
| Type | Crimped Wire Mesh | Application | Protecting Mesh | |
| Weave Style | Plain Weave | Wire Diameter | Requirement | |
| Technique | Woven | Model Number | NJ0162 | |
| Brand Name | Nuojia |
Product Description
1.The Material Of Crimped Wire Mesh
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire,black wire.
3) Galvanized iron wire,galvanized steel wire
4)Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.

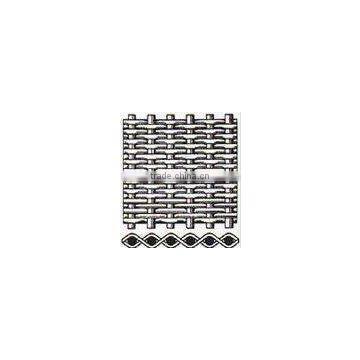

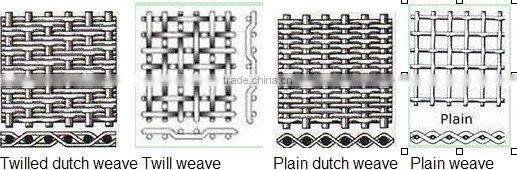

2.The Weaving Type Of Crimped Wire Mesh
1.plain crimped
2.intermediate crimped
3.lock crimped
4.Flat top crimped
3. The Specification Of Crimped Wire Mesh
Crimped Wire Mesh common specifications:
Diameter 1.0mm X mesh opening 8mm or 10mm
Diameter 1.5mm X mesh opening 12.5mm, 15mm or 20mm
Diameter 3mm X mesh opening 15mm, 20mm, 30mm
Length and width specifications: 1mX25m 1mX30m 1.2mX25m 1.2mX30m
Wire diameter(mm) | Aperture(mm) | Specification(m) | Weight kg/piece |
0.6 | 0.8 x0.8 | 1.5 x 2.0 | 10 |
0.7 | 1.0 x 1.0 | 1.5 x 2.0 | 10 |
1.0 | 1.5 x 1.5 | 1.5 x 2.0 | 15 |
1.2 | 2.0 x 2.0 | 1.5 x 2.0 | 17 |
1.5 | 3.0 x 3.0 | 1.5 x 2.0 | 19 |
2.0 | 4.0 x 4.0 | 1.5 x 2.0 | 25 |
3.0 | 5.0 x 5.0 | 1.5 x 2.0 | 42 |
3.0 | 6.0 x 6.0 | 1.5 x 2.0 | 38 |
4.0 | 8.0 x 8.0 | 1.5 x 2.0 | 50 |
4.0 | 10.0 x 10.0 | 1.5 x 2.0 | 43 |
5.0 | 12 x 12 | 1.5 x 2.0 | 56 |
5.0 | 15 x 15 | 1.5 x 2.0 | 47 |
6.0 | 20 x 20 | 1.5 x 2.0 | 52 |
7.0 | 25 x 25 | 1.5 x 2.0 | 58 |
8.0 | 40 x 40 | 1.5 x 2.0 | 50 |
10.0 | 50 x 50 | 1.5 x 2.0 | 63 |
4.The Features Of Crimped Wire Mesh
1)Solid structure
2)Strong impact resistance
3)Abrasion resistance,low cost
4) Uniform mesh to keep for a long time, and beautiful
5) Have very strong palsticity and toughness at room temperature and low temperature,non magnetic,has good resistance to intergranular corrosion.
5.The Application Of Crimped Wire Mesh
1) Crimped wire mesh products are used as fence or filters in a lot of industries;
2) Heavy duty crimped wire mesh products are mostly used as screen in mining, coal factory, construction and other industries.
3) Wire Mesh for Roast: Wire mesh for roast is woven and welded of stainless steel or low carbon galvanized wire. It is heat resisting, corrosion resisting, nonpoisonous, tasteless and convenient for handling. It has a fixed shape and can be used to roast flour food and meat. The shape can be round, square, curve and so on.

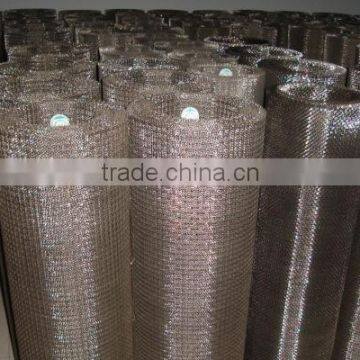

Packing Details: Kraft paper inside,air bubble film outside,then be put in a wooden case.
Delivery Detail:15 days after receive the funds
we can provide some samples to you
Established in 2009, Anping County Nuojia Metal Wire Mesh Co., Ltd is amanufacturer and trader specialized in the research, development and productionof welded wire meshes. We are located in Hengshui, with convenient transportationaccess. All of our products comply with international quality standards andare greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order,
please feel free to contact us.
We are looking forward to forming successfulbusiness relationships with new clients around the world in the near future.
If you have any question, please feel free to contact us.
