Product Details
| Type | Fuel Pump | Size | Standard Size | |
| Car Make | Diesel Engine | OE NO. | Original | |
| Place of Origin | Shandong, China | Brand Name | Taishan | |
| Model Number | DB2000-IIA | Warranty | 1 Years |
Product Description

DB2000-IIA diesel fuel injection pump test bench for entire Russian market
DB2000-IIA fuel injection pump test bench adopts advanced technology of frequency conversion, speed change and industrial controlling computer with the advantages of wide speed-regulation, steady performance and convenience operation . Technical data includes rotating speed, oil measuring frequency and oil temperature can be indicated digitally and printed easily.

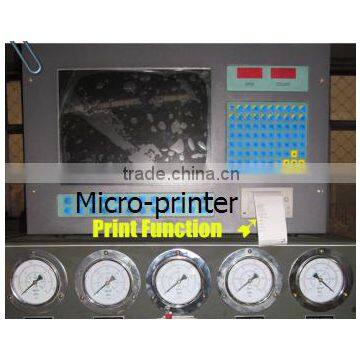

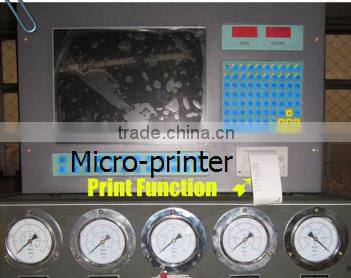

Note: the machine has printer can print data .
1.Frequency-changing and speed-regulation
2.Measuring fuel quantity of each cylinder at various rotation speeds
3.Checking of each line's injection timing with static
4.Checking of the mechanical speed governors
5.Checking of the electromagnetic valve of distributor pump
6.Checking of the pneumatic speed governors
7.Checking of the pressure compensators
8.Measurement of the reflux delivery of distributor pump
9.Measurement of the distributor pump's body internal pressure
10.Checking of sealing of the in-line injection pump body
11.Test of distribution pumps VE inner pressure
12.Supply engine oil lubricating(special order)
Parameter_______
Model | DB2000-IIA |
Rotating speed range of main shaft (rpm) | 0~4000 |
Rotation direction of main shaft | Positive, negative |
Testable cylinders of injection pump | 12 |
Maximum output power (kw) | 5.5/7.5/11/15/18.5 |
Height from center line of main shaft to work table (mm) | 125 |
Capacity of fuel tank (L) | 60 |
Fuel supply pressure of fuel system (Mpa) Low Pressure High Pressure |
≤ 0.4 ≤ 4 |
Supply capacity of fuel system (L / min) | ≥8 |
Oil measuring frequency | 0-1000/50 |
Controlling temperature of fuel (℃) | 40±2 |
DC. voltage (V) | 12/24 |
Power of motor (kw) | 5.5/7.5/11/15/18.5 |
Pressure of air way (Mpa) | -0.1-1 |
Overall dimension (mm) (length×width×height) | 1820×850×1700 |
Weight (kg) | 1350 |
Standard model of fuel injector | ZS12J1 |
Opening pressure (Mpa) | 17.5±0.2 |
PJ-40 Nozzle tester PJ-60 Nozzle tester
Nozzle tester is used to calibrate the injection pressure,fuel atomization,injection angle and tightness of the needle valve if the diesel injector assembly to ensure good power performance and engine economy.Largest pressure tested is 60Mpa.
