7 fixture Hydraulic type refrigerator rotary door manufacturing line
- 1500 Set / Sets per Month
- Nanjing .Shanghai or Ningbo
- T/T
You May Like
-
Refrigerator metal sheet rolling and forming production manufactuing line
-
Superior Easy maintenace Refrigerator linear four fixture cabinet foaming production manufacturing line
-
Easy maintenace Refrigerator linear four fixture cabinet foaming production manufacturing line
-
Multiple stations fridge thermoforming machine for cabinet/door liner
-
Superior Three stations refrigerator vacuum thermoforming machine for cabinet liner
-
Su[perior Three- stations refrigerator vacuum thermoforming machine for cabinet inner liner
Product Details
| Place of Origin | Anhui, China | Brand Name | SUNMINE | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Supplier:Anhui Sunmine Mechanical and Electronic Equipment Manufacturing Co.,Ltd.
Contact preson: Mona Zhou
Add: No 22.outang Road .City East Industrial Park.Economic and Technological Development Zone .Chuzhou .Anhui .China.
Tel:86-550-6822028
Fax:86-550-6822026
Skype:Mona(Sunmine)
Mob:86-18365268171
Wechat:a2016fly
Website :
SUNMINE is the biggest home appliance equipment supplier in China, owned three factories, two for equipment manufacturing, one for mould manufacturing. Occupied totally more than 60,000 square meters.
Sunmine workplace building
Factory A:
Factory B:
Factory C:
Our customers:

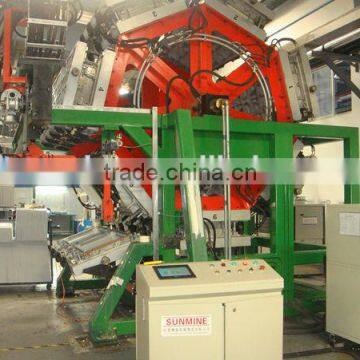

7/8 station refrigerator rotary door foaming production manufacturing line
This rotary drum type with 7(8) fixture line is mainly for door foaming and consists of body frame, rotating frame, foaming frame, hydraulic driven, orientation, mold opening and closing unit, injection unit, species identification unit, hydraulic unit, electric control unit and etc.
Working procedure: Loading manually, auto-injection, cylinder closing, cylinder clamping, curing,
cylinder opening, mold opening while lower mold reach the initial position, unloading manually and etc.
The mold mounting plates are heated by water. Mould can be changed easily. The foaming line can be applied to the products with different dimensions. Compact structure, high efficiency, various compatibility, etc.
Main technology parameter:
Out dimension: | ~6000× 5500× 4600mm(L× W× H) |
Stations: | 7(8) |
Jig size: | 2000× 900(L× W) |
Mould close height(mm) | 200 |
Working rhythm: | 46s(not including the manual operation time) |
Foaming medium: | POL+ISO |
Injection mode: | Open injection automatically |
Power supply: | ~65KW(380V/3ph/50Hz) |
Delivery time :Within six months after getting 40% advance payment
Payment terms :40% T/T deposit in advance .60% balance before shipment or L/C at sight
Port:Nanjing .Shanghai or Ningbo
