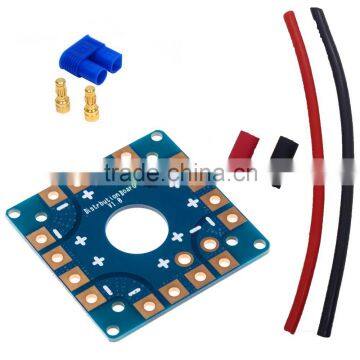

Multi-Rotor Power Distribution Board With Male EC3 Connector Kit

DIY Compact Power Distribution Board

Solder Upto 8 Outputs

EC3 Battery Connector & Wire Included

For use with all Multirotors!

This Handy Power Distribution Board has the same foot print as many of the Multi-rotor boards on the market today.

It is the ultimate solution for tidy power distribution.

Simply solder on your ESC and battery connector, no need for extra bullet connectors!

Product name:Multi-Rotor Power Distribution Board With Male EC3 Connector Kit

Power Input Connector:Male EC3 Connector

Wire Gauge:14AWG Silicone Wire

Wire Length:100mm]

Wire Color:Red&Black

Size of Distribution Board:5.0*5.0*0.2cm

Size of Heat Shrink Tubing:φ4.0mm L=15mm Red&Black

Weight: 15g (Including Wires)

Dongguan Hexie Electronic Co.,Ltd is a professional manufacturer of electronic harness,silicone wire,Medical cable ,Medical accessories PVC cable ,the power cable,especially in the field of dynamic model and peripheralaccessories has quite rich experience,mainly produce all kinds of accessories of R/C model such as R/C model wires and plugs, R/C model brushless motor and we also produce medical Products and Accessories,digital surrounding etc. connection products .

From metal lathing parts to plastic forming ,a collection of R&D,production,sales for the integration of wholly owned Company.

The Company has established complete quality assurance system and sound management mechanism and adhere to the ''quality first,the customer is satisfied,continuous improvement and sustainable management'' As the highest concept. We warmly welcome all the new and old customers and foreign clients to patronize.We also welcome clients both at home and abroad OEM,ODM,we anticipate to create the glorious future hand in hand with you. 7 Day(s)

Characteristics of our products (with UL certificates):

1. Banana plugs

Two types: jointing and welding

The sizes includes2.0mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 5.5mm, 6.0mm, and 8.0mm, 10.0mm

Surfaces are nickel plated or gold plated.

2. Deans T plugs

We have common, mini and special three specifications with black, red and green insulators.

Our conductor's surface is gold-plated or nickel-plated, which ensures the excellent conductivity, electric current: 70A-80A.

3. Other plugs: TRX, XT60, XT90, MT60 XT150, MPX, EC2, EC3 and EC5 EC8.

4. Alligator clips

Mainly used to examination and detection or used as charging clamps;

Our model includes small, medium, large.

5. Switch series: JR switch, FUTABA switch, LED switch etc.

The sizes include small, medium and large

6. Balance adaptor: TP/FP, TP-FP-02, HP-PQ, EH, EH-02, JST-XH6S,

Paraboard XH, TP, HP (T plug, XT60, EC3, EC5,Bare Lead, HXT 4MM).

7. Silicone wires: from 4AWG~30AWG Temperature range: -60 degrees to 200 degrees

Our conductor uses 0.05 to 0.08mm copper lines of 11-2000 pieces (namely model number from 8AWG to 34AWG).

This is an ideal power supply line with standing high temperature and heavy current power.

8. Connectors: all coupling lines of plane models, car models and ship models.

9. Plane model harness : servo lead, extension wires, ignition lines, switch wires, Y-type leads, charger leads, electrical source lines, switch box lines and electronic voltmeter lines

10. Terminal wires: JR lines, Futaba lines, JST lines, battery lines and balance charger plug lines

We keep the management policy of "Innovation and highly efficient" and follow the enterprising spirit to meet our customers' needs. At present, our products are sold well at home and abroad.
