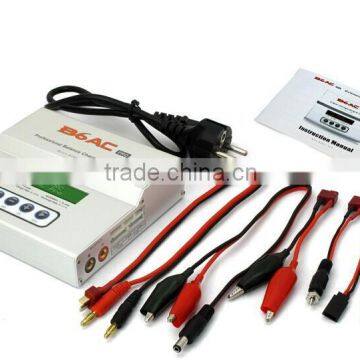

Newest IMAX B6AC lipo battery balance charger

IMAXRC B6AC lipo battery balance charger

Introduction:

It is rapid to charge batteries with high performance MCU and it is professional Intelligent Digital Balance Charger. The IMAX RC B6AC PRO is a universal dual input AC/DC battery management system. It charges and discharges all the latest battery technologies: LiPo, LiFe, Li-Ion, NiMH, NiCd and even your Pb-batteries can be charged with up to 5A! It handles your racing batteries, receiver packs, your radio and many other battery types.

Ready for Car, Boat and Airplane Applications all over the world! The IMAX RC B6AC PRO is perfect for car, boat and airplane applications! Its internal microprocessor controls all the functions like balancing, charging and discharging for optimal results and best safety for the batteries and the environment. IMAXRC offers a specific version for best use all over the world. Five different versions are available: Imax B6AC PRO - 220V EU Version / Imax B6AC PRO - 220V UK Version /Imax B6AC PRO - 110V US Version /Imax B6AC PRO - 220V CH Version / Imax B6AC PRO - 110V JP Version.

Specification:

1. item name: Imax B6AC Pro Professional Multi-functional Balance Charger

2. Input voltage: 11-18V DC 100-240V AC > Charge power: max. 50W

3.Discharge power: max. 5W > Charge current range: 0.1-5.0A

4. Discharge current range: 0.1-1.0A > Current drain for balancing LiPo: 300mAh/cell

5.NiCd/NiMH battery cell count: 1-15 cells > LiPo/LiIo/LiFe battery cell count: 1-6 series

6.Pb battery voltage: 2V-20V

7. Computer USB port: YES

8.Temperature sensor port: YES

9. Size: 135mm X 125mm X 35mm

10.Weight: 800g

Data:

Key Features:

a. Made for LiPo, Li-Ion, LiFe, NiMH, NiCd and Pb batteries

b. Charge with up to 5A > Discharge with up to 1A

c.Dual Input of 100-240V (AC) and 11-18V (DC)

d. Works with 1-15 cells (NiMH/NiCd), 1-6S (LiPo/LiFe/Li-Ion) and 2-20V (Pb)

e.Charge, discharge and storage charge functions > Integrated Balancer

f.Delta Peak and temperature cut off (adjustable)

g.Charge leads included

h.Input and Output protection
