PE plastic pipe extrusion machine
- 20 Set / Sets per Month
- Xingang
- T/T
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | Other, PE/PVC/PP | Screw Design | Single-screw | |
| Automatic Grade | high automatic | Place of Origin | Hebei, China | |
| Brand Name | ZFSJ | Model Number | SJ-90 | |
| Voltage | 380V | Power(W) | 85kw | |
| Dimension(L*W*H) | 15.8M*2.3M*2.8M | Weight | 3000kg | |
| Certification | CE,ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

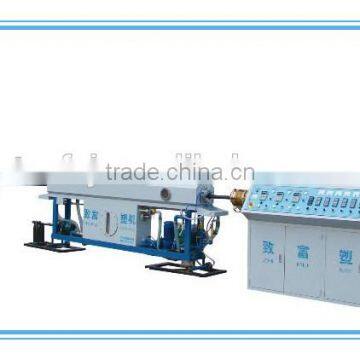

PE plastic pipe extrusion machine
Characters of the machine
The extruder adopts frequency converter control which has the features of easy adjustment, reliable running, stable working and low energy consumption. It adopts independent electirc cabinet and it is easy for the whole machine's centralized control and operation.
The screw bolt and barrel of the extruder is made of good quality nitriding steel. The design is reasonable and the plasticizing effect is excellent and it features stable production.
Shaping of the pipe adopts center material feeding mold and vacuum sizing. Cooling method is the combination of spraying and leach so the precision of the pipe will not deform easily due to plasticity.
It adopts special-purpose roller type tractor and the pipe will not deform easily due to plasticity.
Soft pipe rolling machine adopts torque motor control which overcomes disadvantage of tension. It adopts independent electric cabinet control which is convenient for independent control and operation during production.
When producting small diameter pipe change winder to coiler for hard pipe and equip the line with suitable extruding mold, hard pipe can be produced. When producing big diameter pipe, it shall adopt caterpillar type tractor and change winder to pipe rack and equipped with suitable extruding mold and pipe cutting device to produce hard pipe.
Main technical parameter
Parameter | Technical Parameter | |||
Model | SJ-45 | SJ-65 | SJ-90 | |
Max. extruding capacity | 40kg/h | 60kg/h | 100kg/h | |
Main driving power | 15kw | 22kw | 37kw | |
Filter changing method | Durable filter | Durable filter | Durable filter | |
Heating power | 15kw | 22kw | 37kw | |
Sizing way | Vacuum sizing | Vacuum sizing | Vacuum sizing | |
Pipe specification | Diameter:16-40mm | Diameter:20-75mm | Diameter:63-160mm | |
Cooling way | Spray+immersion | Spray+immersion | Spray+immersion | |
Tracting type | Roller type tractor | Roller type tractor | Roller/caterpillar band type(for hard pipe) | |
Tractor driving power | 1.5kw | 2.2kw | 4kw | |
Winding motor | 6N*m | 6N*m | 12N*m | |
Installation power | 40kw | 50kw | 85kw | |
Overall dimension | Soft pipe | 12m*1.6m*2.6m | 12.2m*1.6m*2.7m | 15.8m*2.3m*2.8m |
Hard pipe | 15m*3m*2.6m | 16.5m*3m*2.7m | 21m*2.3m*2.8m | |
PE PVC Plastic pipe Extruder machine
Certificate/Patent
Item | Certificates/patent type |
Durable filter | Utility new type patent |
Port: Xingang
Package: standard export sea-worthy wooden box, one 20ft container
