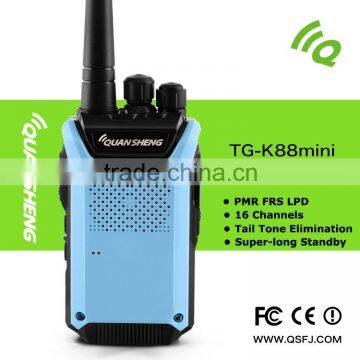

handheld type CE approved 0.5W PMR446 mini walkie talkie TG-K88mini

01. 100 hours super long standby time

02. All colors can be made (we have Injection Department)

03. PC programmable

04. Channel scan

05. Time-out-timer (TOT)

06. Low power alarm

07. Wide/Narrow bandwidth

08. Squelch level adjustable

09. H/L output power selective

10. Voice prompt

11. CTCSS/DCS

12. Dual-watch operation

13. PTT-ID

14. DTMF function

15. 1750Hz call tone

16. Jacklight

17. Tail Tone Elimilation

18. OEM, ODM available

General:

Frequency range UHF: 400-480MHz

VHF: 136-174MHz

Channel 16

Battery 1500mAh(Li-ion)

Size(mm) 101 X 52 X 30mm

Channel Spacing 25 /12.5KHz

Operating Voltage 3.6V

Antenna Impedance 50Ω

Operating Temperature -25°C~+65°C

Frequency Stability ±2.5ppm

Weight(g) 145.5g

Packing(pcs) 20 or 40PCS/CTN

Transmitter:

Output Power 2W

Modulation 16KΦF3E/11KΦF3E

Maximum Deviation ≤5.0KHz(W)/ ≤2.5KHz(N)

Stray Power ≤7.5uW

Preemphasis Character 6dB/

CTCSS/DCS Frequency Deviation 0.75±50Hz(W)/ 0.37±30Hz(N)

Modulation Sensitivity 12mV

Emission Current ≤1.3A

Modulation distortion ≤5%

Receiver:

Sensitivity -122dBm(12dB SINAD)

Adjacent Channel Power 5KHz

Intermodulation ≥65dB(W) / ≥60dB(N)

Spurious Response Rejection ≥65dB

Blocking ≥85dB

Audio Power Output ≤0.5W

Audio Distortion ≤10%

Adjacent Channel Selectivity ≤5%

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.
