Handheld Water Ultrasonic Flowmeter

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	HS or OEM
Model Number	HS-100H

Product Description

Specifications

Ultrasonic Flowmter
Applicable for steel, stainless steel, cast steel, PVC, FRP and other uniform dense quality pipe

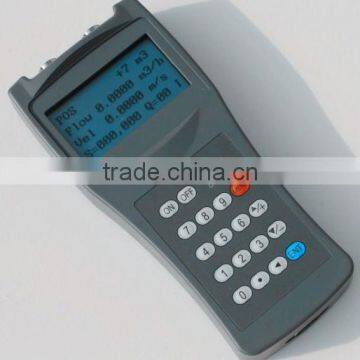

HS-100H handheld ultrasonic flowmeter

HS-100H handheld ultrasonic flowmeter for various industrial field in the liquid flow-line measurement of calibration
and inspection. Has high accuracy, consistency is good, battery-powered, simple operation and easy to carry and

other features, is currently the smallest, lightest quality, truly portable ultrasonic flowmeter, the products have been

exported to Japan, South Korea, Southeast Asia, Australia, the United States and other regions, has been widely praised.

Product Specifications:
Pipe Size: 15mm-6000mm
Transducers: Model M1 for standard, other 3 models for optional
Transducer Cord Length
Standard 2x10 meters, optional 2x 500 meters
Size: Small size 220* 92* 32mm
Weight: Light weight 538g with batteries

ultrasonic flowmeter optional sensors:
1. Standard Small stent sensors(DN15-100mm)
Fluid temperature: <110 Degrees
Dimension: 200 * 25 *25mm
Handle Length: 100mm
2. Standard midsize stent sensors(DN50-DN700mm) (Magnetic)
Fluid temperature: <110 Degrees
Dimension: 280 *40*40mm (2)
3. Standard midsize sensors M1(DN50-DN700mm) (Magnetic)
Fluid temperature: <110 Degrees
Dimensions: 60*45 *45mm
4. Standard large size sensors L1(DN300 bove)
Fluid temperature: <110 Degrees
Dimensions: 80 *70*55mm

Main Specs:

Item	Handheld ultrasonic flowmeter
Linearity	0.5%
Accuracy	± 1% first to meet the accuracy in domestic
Repeatability	0.2%
Response Time	0-999 seconds, user-configurable
Velocity	0.01± 32m/s
Pipe Size	15mm-6000mm
Security	Setup values Modification Lockout. Access code needs unlocking
Display	4 lines English characters on-screen display instantaneous flow, velocity, , cumulative flow, signal status working hours and so on.
Transducers	Model M1 for standard, other 3 models for optional
Transducer Cord Length	Standard 2x10 meters, optional 2x 500 meters
Power Supply	3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation. 100V-240VAC for the charger
Housing Material	ABS
Size	Small size 220× 92× 32mm
Weight	Light weight 538g with batteries

Product Features:

Applicable to	Applicable for steel, stainless steel, cast steel, PVC, FRP and other uniform dense quality pipe
Liquid types	water, sea water, sewage, alcohol, various oils such as uniform, single, stable liquid
Output Signal	OCT output of positive and negative, the net cumulative pulse signal and frequency signal (1-9999Hz optional)
Data Interface	RS232 interface is used for net testing or export the record data. RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.
Straight pipe length	Upstream> 10D, Downstream> 5D, Length from pump exit> 30D
Data Logger	Built-in data logger can store over 2000 lines of data
