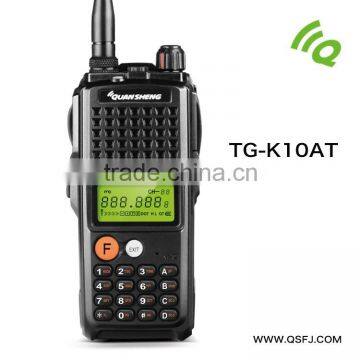

10Watts Long distance walkie talkie with FCC approval, 4000mAh high capacity batterypack

01. Outpower: 15W

02. Adopting newest polymer Li-ion battery

03. Adopting imported PC material in case to make it solid abradable

04. 350 hours' super-long waiting time

05. CTCSS/DCS

06. Voice prompt ( Chinese and English )

07. High or Low power adjust

08. Squelch level adjust

09. Wide/Narrow bandwidth

10. Jacklight

11. PC programmable

12. Channel scan

13. Time-out-timer

14. Low power alarm

15. DTMF PTT-ID

16. 1750Hz call tone

17. Tail tone Elimination

18. Roger

GENERAL

Frequency Range                                         UHF: 400-480MHz

                                                                        VHF: 136-174MHz

Channel                                                         16

Channel Spacing                                          25 /12.5KHz

Operating Voltage                                        7.2V

Antenna Impedance                                     50Ω

Operating Temperature                              -25°C~+65°C

Frequency Stability                                     ±2.5ppm

Battery                                                          4000mAh (Polymer Li-ion)

Dimensions                                                  127 X 63X 42mm

Weight                                                          295g

Transmitter

Output Power                                               10W

Modulation                                                   16KΦF3E/11KΦF3E

Maximum Deviation                                     ≤5.0KHz (W)

Spurious Emission                                       ≤65dB

Audio Distortion                                           ≤5%

Receiver

Sensitivity                                                     ≤0.25/0.28μV

Adjacent Channel Selectivity                     70/50dB

Intermodulation                                           60dB

Spurious Response Rejection                   70dB

S/N                                                                 43/38dB

Rated Audio Power Output                        ≤0.5W

Rated Audio Distortion                               ≤5%
