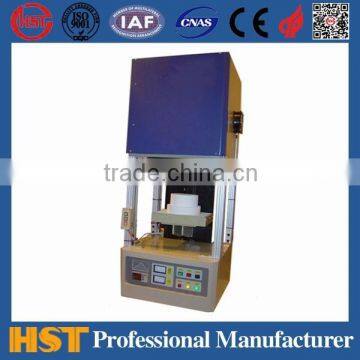

1600BL furnace Bottom Loading bell type for annealing

FOB Price

USD $1,000 - $10,000 / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HST		Model Number	HS-1600BL
Place of Origin	Shandong, China

Product Description

1600BL furnace Bottom Loading bell type for annealing

1600BL furnace Bottom Loading bell type for annealing

All the hearth material are made by the imported Morgen fiber, and its effect of energy-saving is more that 80% of the old furnace.
Our products have the advantages warming faster 20-40 mins, energy saving, high precision temperature control, heat preservation performance , the microcomputer control, programmable automatic temperature, temperature at furnace wall to such high interest conditions, Widely used in ceramic industry, chemical industry, electronic, metallurgy, new materials, machinery, fire-proof material, building materials, special materials of experiment and production. welcome old and new customers.

Inside Chamber Size	200 x 200 x 200 mm (8"x8"x8", 8 Liter)
Standard Working Temperature	1600oC ( continuous )
Maximum Working Temperature	1700oC ( < 3 hrs)
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~ 10.C/ min (suggestion: =< 10.C )
Temperature Accuracy	+/- 1 .C
Heating Element	MoSi2 heating elements
Working Voltage	AC 380V Three Phases 60/50 Hz (or according to your requirement)
Max. Power	9 KW
Outside Size	700 x 800 x 1600 mm
Net Weight	300 Kg

STANDARD SIZE:

Model	Chamber size(WxHxDmm)	Max. Temperature
HS-1600BL	150x150x 150mm (6"x6"x6")	1650.C
HS-1600BL	150x150x 200mm (6"x6"x8")	1650.C
HS-1600BL	200x200x 200mm (8"x8"x8")	1650.C
HS-1600BL	200x200x 300mm (8"x8"x12")	1650.C
HS-1600BL	250x250x 300mm (10"x10"x12")	1650.C
HS-1600BL	300x300x 400mm (12"x12"x16")	1650.C
HS-1600BL	400x400x 400mm (16"x16"x16")	1650.C
HS-1600BL	500x500x 500mm (20"x20"x20")	1650.C

Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: L/C T/T, West union,etc.

Shipping and Delivery: by air , in 15 days after receiving the payment
