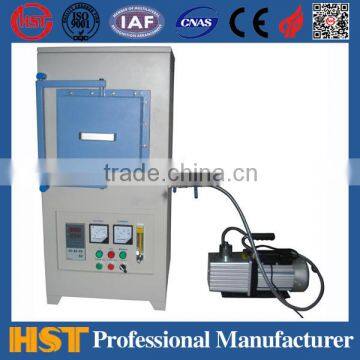

Laboratory High temperature muffle furnace HS-1600A electric Atmosphere vacuum for melting and sintering

FOB Price

USD $500 - $5,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HST		Model Number	HS-1600A
Place of Origin	Shandong, China

Laboratory High temperature muffle furnace HS-1600A electric Atmosphere vacuum for melting and sintering

Laboratory high temperature muffle furnace

Model: HS-1600A
Main Specifications:
Inside Chamber Size	200 x 200 x 200 mm (8"x8"x8", 8 Liter)
Standard Working Temperature	1500oC ( continuous )
Maximum Working Temperature	1600oC ( < 3 hrs)
Furnace Atmosphere	Nitrogen, Argon and other inert gases
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~ 10.C/ min (suggestion: =< 10.C )
Temperature Accuracy	+/- 1 .C
Furnace structure	double shell with fan cooling
Heating Element	MoSi2 heating elements
Thermocouple	B type
Working Voltage	AC 380V Three Phases 60/50 Hz (or according to your requirement)
Max. Power	10KW
Outside Size	550 x 540 x 820 mm
Net Weight	230 Kg

HS series box atmosphere furnace can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas. It’s an ideal furnace for sintering, reducing with inert-atmosphere in labs of university, Research Institution and industrial company.
Standard package included with the furnace
Part description		Quantity
Thermal couple		1 pc
Inlet/outlet,valves		1 set
Flow meter		1 pc
Vacuum gauge		1 pc
Vacuum pump		1 pc
Furnace door block		1 pc
Thermal gloves		1 pair
Operation manual		1 pc
Standard Sizes:
Model	Chamber size(WxHXYmm)	Max. Temperature
HS-1600A	120x120x130mm	1750.C
HS-1600A	150x150x150mm	1750.C
HS-1600A	200x200x200mm	1750.C
HS-1600A	200x200x300mm	1750.C
HS-1600A	250x250x300mm	1750.C
HS-1600A	300x300x400mm	1750.C
HS-1600A	450x450x500mm	1750.C
HS-1600A	600x600x600mm	1750.C

Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: L/C T/T, West union,etc.

Shipping and Delivery: by air , in 15 days after receiving the payment
