Home > Products > Wireless Crane System/Crane System > Industry Weighing Crane Scale HY204W hook with screen and wireless indicator

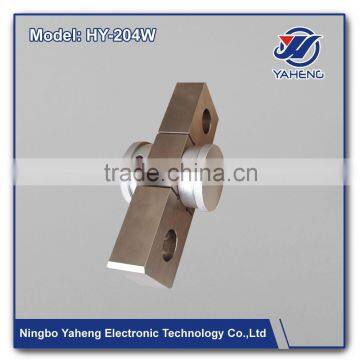

Industry Weighing Crane Scale HY204W hook with screen and wireless indicator
- Ningbo or Shanghai
- T/T
You May Like
-
New electric dynamometer for weighing scale HYCS DY1Electronic Wireless Industry retail weighing scales
-
dynamometer scale with waterproof panel HY DY1 Wireless Crane Scale Multichannel Crane Scale
-
new Industry Weighing Crane Scale Hanging cable with truck HYLS01 wireless cable crane scale
-
floor scale with weighing indicator hyps scale wheel balance hy12
-
bow shackle type crane scale HY LS02W Electronic Weighing With Crane Manufacture
-
Industry wireless Weighing Crane Scale hook scale HY204W Electronic Weighing indicator large screen
Product Details
Place of Origin | Zhejiang, China | Brand Name | yaheng | |
Model Number | HY204W | Type | Crane Scale | |
Power Supply | 220V/50HZ | Display Type | LED | |
Rated Load | 30kg | Accuracy | 0.001g |
Product Description
AD using the 24bit precision low-noise chip , about 100 million internal evidence weighing accuracy .
ultra-low power design , power circuit board smaller . Large-capacity battery configuration , longer life. Unique intelligent charging protection function , prevention of over- flow , overcharge phenomenon . The battery life of a stronger , more durable . Good dynamic weighing performance , not because of swaying weighing . equipped with wireless meter for easy operation.
Wireless two-way control , the conventional communication distance of 300 meters above the control scale body switching machine . accumulated , accumulated automatically , peeled, peeled distance, to maintain the value , the display for dividing the value of any weight correction . Overload, underload remind display, low voltage alarm, alarm when the battery capacity is less than 10% . Technical indicators.
built - in wireless communication module , the frequency rate of work set out in the open between 430MHz to 470MHz ISM band , license-free use .
The current weighing data transmission to less than 1km wireless desktop instrument / hand-held instrument or PC display or management.
Optional wireless big screen.
Rated Load: | 1/2/3 /5/7.5/10/25/35/50/100t |
Wireless Frequency: | 470MHz |
Wireless Distance: | Min : 200m ( default ) |
A/D Conversion Rate: | ≥50 times/seconds |
Battery Life: | ≥50 hours |
Sensitivity: | (2.0±0.1%) m V/V |
Combined Error: | ±0.02% F.S |
Creep Error ( 30min ) : | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/ 10℃ |
Temp. Effect On Span: | ±0.02% F.S/ 10℃ |
Input Resistance: | 750±5 Ω |
Output Resistance: | 702±2 Ω |
Insulation Resistance: | ≥ 5000M Ω |
Operating Temp. Range | -30~+ 70℃ |
Maximum Safe Over Load: | 120%F.S |
Ultimate Over Load: | 200%F.S |
Recommend Excitation: | 10~12V DC |
Maximum Excitation: | 15V DC |
Sealing Class: | IP67/IP68 |
Element Material: | Alloy Steel, Stainless Steel |
Citation: | GB/T7551-2008/ OIML R60 |
Product Description
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
