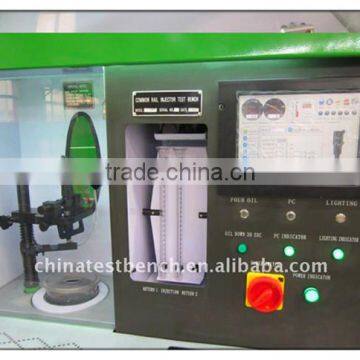

CRIS-1 Common Rail Injector Test Bench The Most Advanced Machine

CRIS-1 common rail injector test bench The most advanced machine

CRIS-1 high pressure common rail injector test bench is based on the diesel engine ECU, also provides control signal of common rail system of Bosch, Denso, Delphi and Siemens etc. (the CP1 /CP2 /CP3/ HP3 /HP4 / DELPHI), drive the high pressure common rail injector to work. The user can set parameters according to their actual situation, and save the data according to the different group, so that the servicemen do the correct judgment and maintain of the working of common rail system.

Products features

1. Support high-speed solenoid valve type common rail injector, and support the third generation of high pressure common rail piezoelectric crystal common rail injector

2. Support various rail pressure sensor

3. Hardware and software both the short circuit protection, machine more reliable configuration

4. Motor soft start, stepless speed regulation

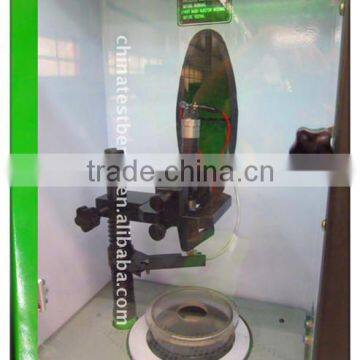

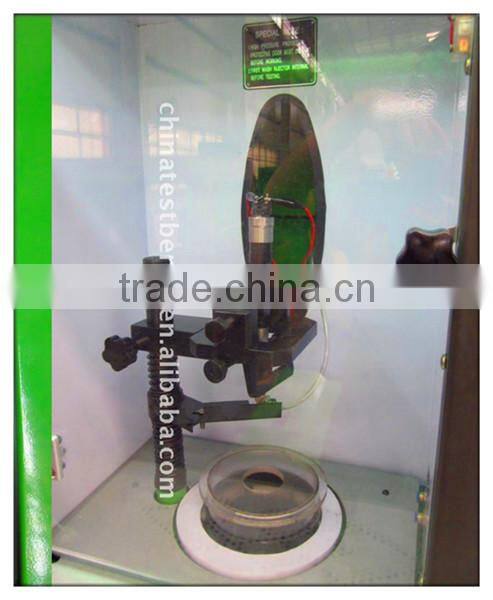

5. rovide special fixture of testing injector

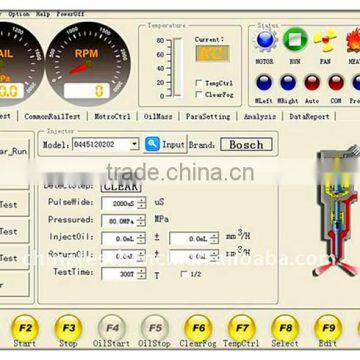

6. Set the injector drive letter pulse width and frequency

7. Set scale valve driving signal dutyfactor setting

8. Setting rail pressure and open/closed-loop control

9. Measurement of the fuel delivery of common-rail injector

10. Measurement of the reflux delivery of common-rail fuel injector

11. Testing the opening pressure and the degree of atomization of common-rail injector

12. Test the cranking oil quantity of common rail injector

13. Test the sealing of injector

14. Ultrasonic cleaning of the common rail injector

15. Various linguistic choice, Chinese/English/Russian

16. Safety design, prevent operators, use more safety

Main technical date

The oil-collecting tank of the test bench should be supported on the working table and the frame firmly with wooden blocks when packing.

The test bench must be covered with plastic proof and the top cover of the packing case should better be hammered with a layer of oil felt to prevent water or rain.

Avoid violent shock during transportation. Do not let the rope touch bench directly to avoid damaging surface when hoisting after unpacking.

Service Content

1.Provide customers with pre-sale after sale the whole process a full range of services

2.Undertake Gezhongfeibiao, development and design of special equipment, manufacturing.

3.Providing the overall process solutions

4.Product use, maintenance and technical training

5.Technological upgrading of products tracking service

6.Provide dedicated technical advice

7.It offers a variety of spare parts, special tools accessories.

8.It offers a variety of diesel fuel system authentic parts

Pledge

Product quality Three Guarantees year

Providing products and services for life

Focus on key customers set up special service

Ensure quality and timely service

              Founded in 1966, lying at the foot of the famous Mountain  Tai, an important skeleton enterprise being tech-reconstructed in 65, 75, 85 period by the nation, the Taian Taishan Jinshi Machine Co., Ltd(the primary Taian Experimental Equipment Factory) is a member of the gas engine industry union and a Chinese automobile servicing equipment league syndic unit, a nozzle and injection pump  industry syndic unit. Now, the factory has more than 900 workers and covers an area of 100 thousand square meters, which has over 400 producing equipments. It has the ability of produce the machine, electronics, transportation equipment, molding tool. Year to year provides injection pump technology training. It is the largest special manufactory producing gas engines in China.



 ^~^ ^~^   ^~^ ^~^   ^~^ ^~^   ^~^ ^~^   ^~^ ^~^   ^~^ ^~^   ^~^ ^~^   ^~^ ^~^   ^~^ ^~^
