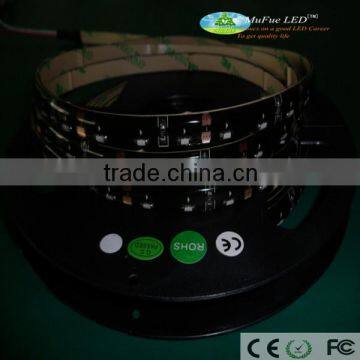

12v 60LEDs waterproof epistar chip 335 side view LED strip light by mufue

  12v 60LEDs waterproof epistar chip 335 side view LED strip light by mufue

Parameter:

Product Name SMD335 Flexible LED Strip
Model Number MF-12V-335
Voltage DC 12V/ 24V
Output current 300mA/ 150mA
Power 4.8W/M, 9.6W/m
Light source SMD 335 LED
LED Number 60LEDs/meter, 120LEDs/meter
Dimension 5000 X 8X 0.2 mm
Beam angle 120 degrees
Color range Single color
Lifespan > 50, 000 hours
Working temperature -40~+50 ° C
 Black FPCB,Copper FPCB,White FPCB
Protection rate IP20 (IP65 IP67 IP68 is available)
Certificate CE, RoHS
Color temperature 3000K-7000K

Our advantages:

uses genuine Samsung resistance and Epistar Side View SMD 335 LED.

Best FPCB in ShenZhen

Quality higher than similar products in the market , but we have a more favorable price

Strip Parameters:

7-8LM/LED, Mini CRI>45 for White(6000K-6500K) 335 side view LED strip light

RED 625-630nm  >400 MCD

Yellow 586-591nm >400MCD

Blue     465-470nm >400MCD

Green  520-530nm  >1000MCD for single color and RGB 5050 LED strip light

8MM,5MM FPCB

60leds,120leds& can be customzied

60leds strip about 4.8watt/meter(MAX)

For Epistar 335 led strip light, Mufue Provide 2 years warrany

Features:
· 1. Used Super bright Epistar SMD335 LED as lighting source.
· 2. 300 PCS LED / 5 Meters
· 3. Size:5000X8MM ,5000X5MM.
· 4. Available of this led light strip : Natrual white/ Cool White / Warm White; RGB
· 5. Input Voltage: DC 12V or 24V;
· 6. Max power:24W (for 60LEDs strip)
· 7. Can be cut by 3 LEDs (DC 12V) or 6 LEDs (DC 24V) and connect again by our accessories;
· 8. With 3M adhesive tape back, easy for installation.
· 9. This 335 led strip can be changed into waterproof with type A - silicone tube IP65
· 10.White PCB Board,copper,black available

 Application:

·1. Architectural lighting for window ,archway ,canopy and corridor.
· 2. Decorative lights for holiday, event, showing, exhibition.
· 3. DIY light for home use.
. 4. Backlight or edge lighting for sign
