Digital Wire Rope Tension Gauge/Pressuremeter Tension Gauge
US$ 130 - 4,000
/ Piece
1 Piece(Min. Order)
- Qingdao China
- T/T Credit Card
You May Like
-
HF digital dynamometer,push pull force meter
-
HF series digital display tension gauge,push-pull force gauge
-
3000KN digital push pull force gauge/digital dynamometer
-
2000KN/3000KN tension and compression force testing machine/force gauge
-
HF series digital display push force gauge
-
Digital display push pull gauge/HF push pull gauge
Product Details
| Place of Origin | Shandong, China | Brand Name | Hensgrand | |
| Model Number | HF |
Product Description
Specifications
1. CE Certificate2. One year Warranty
3. Can connect to PC
4. 6 digits screen display
5. N , kg and lb three units

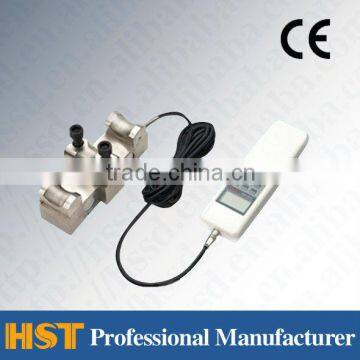

Wire Rope Tension Gauge
Description:
Digital pressuremeter tension tester is a kind of special equipment to measure wind towers, signal transmission and power transmission systems rope tension. It has characters of high precision, easy to operate, easy to carry, etc. also it has many kinds of test modes, convenient to testing. Users can also input gravity acceleration value to make the test more accurately.
Function Characteristics:
1. High precision, high resolution.
2. Five kinds of test modes, three kinds display modes---To improve test efficiency to the greatest extent.
3. N (Newton), kg (kg), lb (lb) three testing units for selection, mutual conversion.
4. Gravity acceleration setting function---Users can input the precise gravity acceleration value of testing place, make the testing and unit conversion more accurate.
5. Peak holding function---Maintain peak display until manual reset.
6. Automatic peak function---Maintain peak value can be removed automatically after 2 seconds.
7. Can set upper and lower limit value to make statistical analysis, the value more than
comparative value, the alarm buzzer will alarm.
8. Data stored function, we can store 896 test values.
9. 10 minutes without operating automatic shutdown, green initiative.
10. High quality charging power,charge voltage from 240V to 100V, can adapt to domestic and foreign most areas,also have short circuit, leakage, overload protection function.
11. 2 sets of installation dimensions, adapt to domestic and foreign most test machines,convenient to installation and using.
12. Six digit Big screen display.
Parameter:
| Item No. | Rope Diameter (mm) |
| HD-1T | Φ 6~Φ 14 |
| HD-2T | Φ 10~Φ 18 |
| HD-5T | Φ 16~Φ 26 |
| HD-10T | Φ 24~Φ 36 |
| HD-20T | Φ 24~Φ 36 |
Tension Gauge Schematic
