63 - 110mm HDPE Double Station Plastic Pipe Winding Machine
USD $50 - $15,000
/ Set
1 Set(Min. Order)
- Wuhan China
- T/T
You May Like
-
PVC 63 -160 50-250mm Double Station pvc pipe belling pipe expander machine
-
110-315mm PVC pipe Expanding Belling Socketing Machine
-
63 - 110mm HDPE Double Station Plastic Pipe Bobbin Winder with High Quality
-
PVC pipe diameter from 110mm to 400mm pvc pipe englarge Machine
-
Air cool PVC 250-630 Big pvc pipe belling machine
-
China factory price plastic pipe coiler winding machine
Product Details
| Condition | New | Application | Pipe Winding | |
| Place of Origin | Hubei, China | Brand Name | HYPET | |
| Model Number | HY-110 | Inside Diameter Range | 1600 mm | |
| Outside Diameter Range | 2400 mm | Spool Capacity | 200 Meters | |
| Arrange Width | 500 mm | Voltage | 380V/ 3 Phases/ 50HZ | |
| Power(W) | 40 Kw | Dimension(L*W*H) | 3500*2300*3200 mm | |
| Weight | 3000 Kgs | Certification | ISO9001, CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

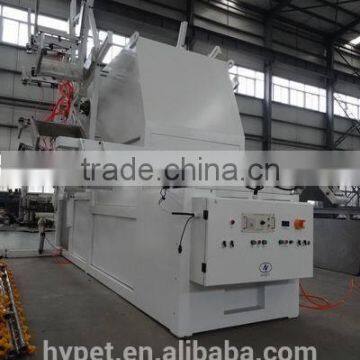

HY-110 Double Station HDPE Pipe Winding Machine (Coiler)
Function:
HY-110 double station coiler was used for winding plastic cable and big sizes plastic hose. Working together with extruder, vacuum calibrating tank and haul off machine, it makes the plastic hose and cable winding to reel which driving by the haul off device. Adopting two winding plate which working alternately to make sure producing continuously. Equipped with traverse, the cable could be winding automatically, well-distributed and regularly. The machine is in compact structure, highly automatic, nice-shaping and easy operating.
Main Specification:
| No. | Name | Marks |
| 1 | Model | HY110 Coiler in Double Station |
| 2 | Pipe range | 63 - 110mm |
| 3 | Coiler inner diameter | 1600 - 2400mm |
| 4 | Coiler width | 500mm |
| 5 | Torque Motor | 40N.M*2 |
| 6 | Winding method | Serving traverse |
| 7 | Discharge method | Automatic discharge |
| 8 | Air pressure | 0.6 – 0.8Mpa |
63mm Winding Machine for Option
