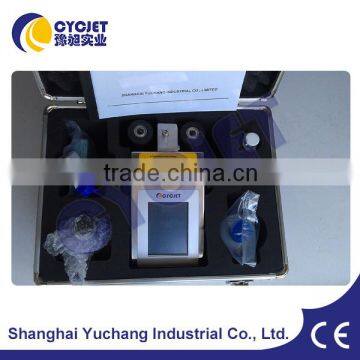

CYCJET ALT382 Industrial Inkjet Coding Printer/Inkjet Batch Code Printer/Ink Roll Coder Machine

Print Height

0.8-54mm

Print Spacing

8mm-10mm,it is subject to the printing content & ink type

Print Lines

The lines unlimited within Max height 54mm.

Print Length

Single file max length 20000 dots (the Max height 2.54m when the resolution is 200DPI)

Print Speed

60m/min (Cross direction resolution 100DPI)

Print Resolution

Resolution height is 200DPI; Cross direction resolution 100-400DPI can be adjustment

Print Fonts

The built-in various font, and horizontal bar,vertical bar,dot-matrix,bold font can be free change.

Print Content

Real Date, Real time, Photo, Letter, Shift group, Serial number, Batch number, Lot number Barcode and 2D code can be free print.

Print Direction

Upward printing, downward printing, side printing(360°direction printing)

Font library

Standard font library are Chinese & English, and The Spanish,Portuguese,Arabic font library can be optional

Operator Interfaces

Image-style & Chinese or English ( Spanish,Portuguese,Arabic)menu, What you see is what you get.

Memory Function

More than 1000pcs text can be storage

Display

7inch color touch screen

Ink Type

Ink is originally from UK. There are Solvent-based ink (machine should be regular maintenance); Invisible ink (Machine should be regular maintenance); Oil-based ink (machine maintenance free).

It can be print on the surface of plastic,glass,metal,paper,wood...

Ink Color

Black, Red,Yellow, Blue,Green,white, etc…

Each Ink Cartridge

Each ink cartridge can be print 850 million ink dots, when efficient production:

*each ink cartridge can be print 400,000.00pcs bottle cover or medicine box with 2 lines small dot-matrix font, the text size is 1*1.7cm2, the using cost for each product is RMB0.001Yuan);

*each ink cartridge can be print 20,000.00pcs big carton with big dot-matrix font, the text size is 3.5*20 cm2, the using cost for each carton is RMB0.02Yuan);

*each ink cartridge can be print 10,000.00pcs big carton with bold font, the text size is 3.5*20 cm2, the using cost for each carton is RMB0.04Yuan);

Weight of Machine Dimension of Machine

1.75KG
230*135*183mm

Rechargeable Batteries

New battery standby about 8hours; print time about 7hours;

Powder

The charger input AC100V-260V,50-60Hz, Output DC 12.6V

Humidity Range
Temperature Range

10-90% Non-condensing
5-40°C

External Interface

USB interface, synchronizer.

Others

No need connect external compressed air, and no need thinner (i.e. solvent)
