Home > Products > LED Light Fixture > Singapore,150W IP65 LED Low Bay Light with Philps LED & Pure Aluminum radiator.Meanwell driver,85-277V,5Year warranty
Singapore,150W IP65 LED Low Bay Light with Philps LED & Pure Aluminum radiator.Meanwell driver,85-277V,5Year warranty
- Singapore
- T/T Credit Card
You May Like
-
Ceiling light LED module
-
LIGHTING LOUVRE FOR T5, T8 TUBE (SINGAPORE BRAND)
-
Singapore UL Approved LED Corn Lamps, 126W with SAMSUNG 5630 LEDs and Rubycon Capacitors,Retrofit IP64 LED Corn Lamp
-
Singapore UL Approved LED Corn Bulb, 22W with SAMSUNG 5630 LEDs and Rubycon Capacitors, UL approved Retrofit IP64 led corn bulb
-
Singapore UL Approved LED Corn Lamps,100W with SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 UL approved led corn bulb
-
Singapore UL Listed LED Corn Lamps,10W with SAMSUNG 5630 LEDs and Rubycon Capacitors, 360degree Integrated led corn lamp
Product Details
| LED Light Source | Philips | Input Voltage(V) | 85-277 VAC | |
| Lamp Power(W) | 150 | Lamp Luminous Flux(lm) | 12750~13500 lm | |
| Lamp Luminous Efficiency(lm/w) | 90 | Color Temperature(CCT) | Other, 2700K ~ 7000K | |
| Working Temperature(℃) | -25, 50 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | CE, EMC, LVD | Warranty(Year) | 5 | |
| Place of Origin | Singapore | Brand Name | Green power | |
| Model Number | ILT--FL-05-150W |
Product Description

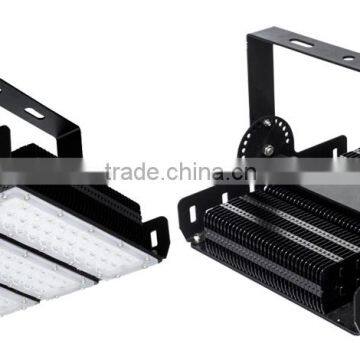

Product name: Singapore 150W IP65 LED Tunnel Light with Philips LED and Pure Aluminum radiator. Meanwell driver, SASO approved, 85-277V, 5Years warranty.
Model: ILT-FL-05-150W
Features
* Genuine energy efficient reliable alternative to existing HID tunnel light solutions. The modular tunnel light offer an enhanced light output through a significantly more regular uniformity and more realistic and comfortable light colors.
* Energy savings of up to 50-80% over existing HID solutions. Combined with a 10+ year operational life at 24 hours daily usage and a zero planned maintenance over this period, this translates into major savings to municipalities.
Specs Data Sheet
Power | 50W | 100W | 150W | 200W |
Lumen | 4250~4500 lm | 8500~9000 lm | 12750~13500 lm | 17000~18000 lm |
Power factor | >0.95 | |||
Input voltage | 85-277 VAC | |||
Meanwell led driver | HLG –60H | HLG-100H | HLG –150H | HLG-240H |
CCT | 2700K ~ 7000K | |||
CRI | Ra=70~85 | |||
Luminous efficiency | 85~90 lm/w | |||
LED brand | PHILIPS 3030 | |||
Housing color | Black | |||
IP grade | IP65 | |||
Beam angle | 90°* 90° ; 60°* 60° | |||
Material | Aluminum | |||
Working temperature | -25°C ~ +50°C | |||
Lifespan | 50000 Hours | |||
Warranty | 5 Year | |||
Product Dimension
Power | 50W | 100W | 150W | 200W |
Size: L*W*H | 315*90*130mm | 315*130*180mm | 315*130*283mm | 315*130*360mm |
Installation:
Please read the installation instructions carefully before installation, and follow the prompts to strict specifications to operate
1. Make sure that power is turned off before installation to ensure safety.
2. By mounting holes on the mounting bracket product can be directly screwed to the mounting pole or wall mounting.
3. After fixing a good product, you can slightly loosen the screws on both sides of the bracket, and then convert the bracket to adjust the illumination angle of the lamp.
4. Working environment temperature -25 ℃ ---- + 45 ℃. Humidity: 10% -90% RH.
5. Wiring joints, please do the installation of lighting waterproof seal 5. measures to prevent water and drain.
6. The non-dimming lighting fixtures, do not connect with any standard dimmer.
7. Please find a professional electrician to install, greeting connect wiring according to instructions on the label, make sure that a good grounding.
Mounted Height Recommendation
LED Tunnel Light | HID Tunnel Light |
50W | 100W |
100W | 200W |
150W | 320W |
200W | 400W |
Caution:
1. This product is LED lamps protection class IP65, it is not suitable for swimming pools or other underwater sites.
2. To ensure proper use, please do not change the LED lamp structure. Any adverse please contact the manufacturer sales staff.
3. Regular cleaning of the floodlight glass, in order to maintain good lighting translucent.
4. regularly floodlight housing and radiator dust cleaning, in order to maintain good heat dissipation.
Luminaire Photometric
Average and Center E Figure
Tunnel; Underpass; etc
Product Packing
Power | PCS/CTN | Net Weight | Gross Weight | CBM |
50W | 2 | 2.0KG | 4.6KG | 320*210*215 mm ≈0.015m3 |
100W | 1 | 4.7KG | 6.0KG | 340*250*160 mm ≈0.014m3 |
150W | 1 | 6.0KG | 7.4KG | 340*300*160 mm ≈0.016m3 |
200W | 1 | 7.8KG | 9.2KG | 390*340*160 mm ≈0.021m3 |
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
