Product Details
| Brand Name | LINK-MI | Model Number | LM-HVY01 | |
| Place of Origin | Guangdong, China |
Product Description
Specificaton
HDMI to VGA/RGB/YPbPr Converter
♦ Convert HDMI Input to RGBhv/YPbPr/YCbCr Output With a 15 pin HD-sub(VGA style)Jack
♦ HDCP Compliant &DVI 1.0 Compliant
♦ Support HD Format From 480i to 1080p
LINK-MI LM-HVY01 HDMI to Component VGA/RGB/YPbPr Converter With Audio Output
Introduction
LM-HVY01 HDMI to VGA/RGB/YPbPr Converter is a converter which can convert HDMI input to RGBhv/YPbPr/YCbCr output with a 15 pin HD-SUB ( VGA Style ) jack. This HDMI to VGA/RGB/YPbPr Converter supports analog L/R audio and digital audio SPDIF output, have two 100% digital HDMI 19pin female port and have a switch can choose RGBHV or component (YPbPr/YCbCr) output.

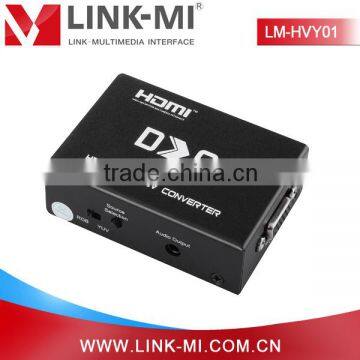

Product Picture
Model No.: LM-HVY01
Product Type: HDMI to VGA/RGB/YPbPr Converter
HDMI to VGA/RGB/YPbPr Converter
Features
♦ Two digital HDMI 19p female port(100%digital)
♦ Convert HDMI input to RGBhv/YPbPr/YCbCr output with a 15 pin HD-sub(VGA style)jack
♦ Two channels input can be switched easily
♦ Users can choose RGBHV or component(YPbPr/YCbCr)output with a switch
♦ RGB 4:4:4(8bits)digital input
♦ YPbPr 4:4:4 or YCbCr 4:2:2 digital output
♦ Stereo high-quality analog or digtal/optical audio output(s/PDIF format)
♦ HDCP Compliant &DVI 1.0 Compliant
♦ Supports 1.5Gbps signaling rate
♦ Supports HD format from 480i to 1080p
♦ Green LED light indicates the connection status
Specification
Operating Temperature Range | -5 to +35°C( +23 to +95 Degree Fahrenheit) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Video Amplifier Bandwidth | 165MHz(Maximum) |
Input video Signal | 5 volts p-p(TTL) |
Output resolution | VGA/SVGA/XGA/SXGA/UGA |
Output Audio Format | Analog audio L/R and digital audio SPDIF output |
Power Consumption | 3Watts (Maximum) |
Dimension (L×W×H) | 72x50x23mm |
Net Weight | 128g |
Gross Weight | 750g |
Panel Description
Connection and Operation
♦ Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.
♦ Connect the HDMI output (such as :HD-LCD,HD-DLP) into HDMI output.
♦ Connect the audio output into audio device.
♦ Insert the DC side of 5v power supply into power input and then connect the AC side of the power supply into the wall outlet
Attention: Insert/Extract cable gently.
Wiring Diagram
Packing Contents: HDMI to VGA/RGB/YPbPr Converter
♦ Main Unit. HDMI to VGA/RGB/YPbPr Converter
♦ DC5V 1A Power Supply
♦ Operating Instructions
♦ VGA to RCA cable
♦ Toslink cable
