LINK-MI LM-SP19 6.75Gbps Data Speed Rate 50m 4 Way HDMI Splitter/Distribution

LINK-MI LM-SP19 6.75Gbps Data Speed Rate 50m 4 Way HDMI Splitter/Distribution

Model No.: LM-SP19

Product Type: 4 Way HDMI Splitter/Distribution

Keyword: 4 Way HDMI Splitter/Distribution

Model No.: LM-SP19

Introduction:

   LM-SP19 6.75Gbps Data Speed Rate 50m 4 Way HDMI Splitter/Distribution which have 1 HDMI input and 4 UTP output ports, distributes 1 input HDMI signal to 4 UTP Method HDMI outputs, can transmission distance up to 50m over single cat5e/6 cable, supports 1080p @60Hz and 3D technology, using DC 5V power.

Features:

1) Distributes 1 input HDMI signal to 4 UTP method HDMI outputs.

2) Transmission distance up to 50m under 1080P@60Hz over Single Cat5e or Cat6 cable

3) Supports High Definition Audio : Dolby TrueHD, Digital Plus, DTS-HD Master Audio

4) Supports 30/36bit deep color display

5) Support 3D technology

6) DC 5V power

Specifications:

Packing Contents:

1)    Main Unit. 4 Way HDMI Splitter/Distribution

2)    1pcs 5V/3A DC Adapter

3)    1pcs User Manual

Panel Description

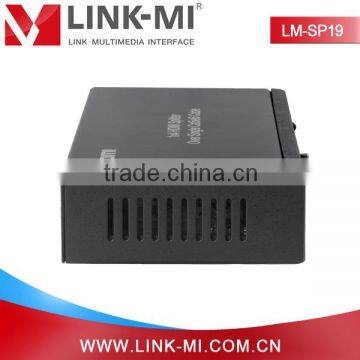

Product Overviews

Connection and Operating

1) Connect the HDMI input source into HDMI splitter (Input cables are optional).
2) Connect single CAT-5E/6 cables to both the outputs (2 to 8)of HDMI splitter and inputs of Cat5e/6 receiver (The cable termination must follow the standard of EIA/TIA 568B ).
3) Connect the HDMI output (such as HD-LCD/HD-DLP) into the receiver(HDMI output)
4) Insert the DC side of 5v power supply into HDMI splitter and receiver then connect the AC side of the power supply into the wall outlet.
5) Turn on the power of HDMI splitter.
Important:Select 3D Mode when source and sink were 3D format

Connection Diagram
