Product Details
| Brand Name | LINK-MI/OEM | Model Number | LM-SP22-Audio | |
| Place of Origin | Guangdong, China |
Product Description
LINK-MI OEM 4K2K 3D 1 Input 2 Outputs HDMI Switch Box,HDMI Splitter 1x2 with UTP
Model Number: LM-SP22-Audio
Keywords: 1 input 2 outputs hdmi switch box
Introductions: 1 input 2 outputs hdmi switch box
Home Theater 4K 3D TV HDMI Splitter/Distribution 2x2 is a newest 2x2 HDMI splitter with 50m UTP Input ,supports all the mandatory and several optional 3D formats, maintains sharp HDTV resolution up to 4Kx2K full HD. It offers HD video solution for super market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.
Features
1. 2x2 HDMI Splitter, with 1xHDMI input, 1xUTP input, 2 HDMI outputs.
2. Resolution reach up to 4Kx2K.
3. Transmit 50m when connect the source to the UTP input of HDMI splitter.
4. Manual or IR remote controller to select the input sources.
5. Advanced EDID management for rapid integration of sources and displays.
6. With Audio extraction via optical cable.
7. Support 3D format.
8. Support LPCM, DLBY 5.1, DOLBY 7.1, DTS 5.1, DTS-HD master Audio.
9. Supports 36 bit deep color display.
10. Bandwidth: 10.2Gbps (Maximum).
11. HDCP Compliant.
12. DC 5V Power supply.
Specifications
Operating Temperature Range | -5 to +35℃(+23 to +95℉) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Input Video Signal | 1 HDMI Input, 1 UTP Input(Support 50m transmit distance via 1xCat5e/6 cable) |
Input DDC Signal | 5 volts p-p(TTL) |
Bandwidth | 10.2Gbps(Maximum) |
Video Format Supported | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K 3D video support |
Video Output | 2 HDMI outputs |
Support Video Color Format | Deep color 36bit |
Support Audio Format | LPCM DOLBY5.1 DOLBY7.1 DTS 5.1 DTS-HD |
Power consumption | 2watts(Maximum) |
Dimension (L×W×H) | 87x87x26mm |
Net Weight | 210g |
Product Introductions
EDID
Position ID | Function |
0 | EDID MIX |
1 | EDID copy from output 1 |
2 | EDID HDMI 1.2, 2CH |
3 | EDID HDMI 1.2, 6CH |
4 | EDID HDMI 1.2, 8CH |
5 | EDID HDMI 3D, 2CH |
6 | EDID HDMI 3D, 6CH |
7 | EDID 4K |
Connection Diagram
1. Connect with LM-EX11-TX
2. Connect with LM-MX88-3DCAT
CONNECT AND OPERATE
1) Connect the HDMI sources 1 (such as PS3, STB, DVD, ETC) to the “ input 1 ” of 2x2 HDMI splitter.
2) Connect the HDMI sources 2 (such as PS3, STB, DVD, ETC) to our 50m HDMI extender transmitter (LM-EX11-TX) or 8x8 HDMI matrix over 50m cat5e/6 cable (LM-MX88-3DCAT).
3) Connect 50m HDMI extender transmitter (LM-EX11-TX) or 8x8 HDMI matrix over 50m cat5e/6 cable (LM-MX88-3DCAT) to 2x2 HDMI splitter by cat5e/6 cable.
4) Connect HDMI displays (such as HDTV, HD-LCD) into the HDMI outputs of 2x2 HDMI splitter.
5) Connect DC 5V power to the power port of 2x2 HDMI splitter.

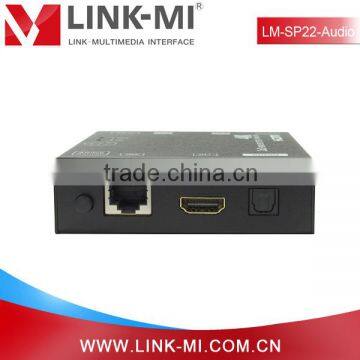

Product Display
PACKING CONTENTS: LINK-MI OEM 4K2K 3D 1 Input 2 Outputs HDMI Switch Box,HDMI Splitter 1x2 with UTP
1) Main Unit. HDMI Splitter/Distribution 2x2
2) 5VDC Power Supply
3) Operating Instructions
4) Remote Controller
