Gas spring Metal Ball Socket/connector

FOB Price

US$ 0.166 - 0.562 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JL/JQ
Model Number	JL/JQ

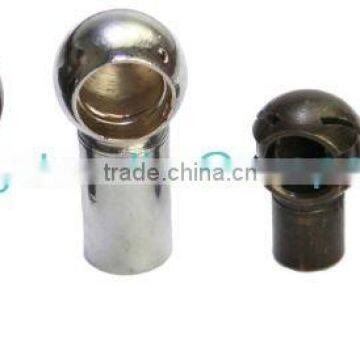

Gas spring Metal Ball Socket
1.Thread: M8
2.Suitable for Diam 17mm ball stud
3.Effective length 21mm

Metal Ball Socket for Gas spring

We have attained ISO9001 certification and also have been audited by the SGS Group.
Material: Low carbon steel or Mild stell, Q235.
Inner parts are full of lubricate oil, induction hardened balls are wear resistant.
Retaining ring inside, with safety clip ouside or without.
Surface treatment: Nickel, white or yellow or blue or black zinc, chrome, copper plating, electroplate, etc

More photos & Drawing About Gas pring metal ball socket:

Metal Ball Socket with clip for gas spring (dimension in mm)
Type	D	d	M	d2	L1	L2	L3
JL01	15	10	M6	9	15	10	9
JL02	16	10	M6	10	18	12	11
JL03	16	10	M6	10	19	13.5	13
JL04	20	13.5	M10	13	23	15.5	14.5
JL05	19	13	M8	13	30	21	20
JL06	20	13	M8	13	19	12	11
JL07	19	13	M8	13	30	18	17
JL08	14	16	M10	16	25	16	14
JL09	15	10	M6	10	25	18	18
JL10	24	16.5	M12	17	29	20	18
JL11	17	10	M8	10	21	14	13

Metal Ball Socket with snap ring for gas spring (dimension in mm)
Type	D	d	M	d2	L1	L2	L3
JQ01	12	8	M5	8	12	8	7
JQ02	16	10	M6	10	20	13	13
JQ03	16	10	M8	10	20	14	13
JQ04	16	10	M6	10	20	13.5	13
JQ05	18	10	M8	11	20	14	13
JQ06	18	10	M8	11	19	12.5	12
JQ07	20	13	M10	13	23	16	15

Many types are available, special versions upon request!
For more information, please contact us
