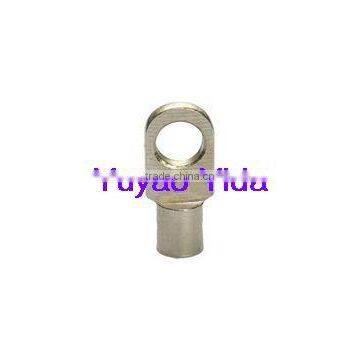

8.5-22mm 3T Nickle Plated Pipe Fitting With M6

FOB Price

US$ 0.113 - 0.146 / Piece

5000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	EF
Model Number	EF02

1.Inner thread M6
2.pipe fitting Bore eye Diam 8.5mm
3.Width eye 3mm
4.gas spring pipe fitting Effective length 22mm

8.5-22mm 3T nickle plated Pipe Fitting with M6

We have attained ISO9001 certification and also have been audited by the SGS Group.
Material: Low carbon steel or Mild stell, Q235.
Surface protection: Nickle plating
Optional: Electroplated, Phosphatized and oiled, galvanized in white or yellow or blue or black, passivated by chrome or nickle.
A wide range of gas spring pipe fittings in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

More photos & Drawing ABOUT Gas spring pipe fitting:

Dimension table(Metal connector, steel connector, Eye end fitting)
Type	M	D1	R	L1	L2	D3	D2	H
EF01	M5	7	8.5	9	10	9	15	5
EF02	M6	8.5	7.25	12	10	9	13	3
EF03	M8	10	8	11	14	10	15	8
EF04	M6	8	8	12	10	9	15	8
EF05		8	7	14	11	14	16	10
EF06		10	8.5	15	11	14	16	5
EF07	M8	10	8	14	14.5	11	15	5
EF08	M8	8	8.5	17	13.5	11	15	4
EF09	M8	11.5	14	11	14.5	10.5	17	6
EF10	M8	9	9	18	12.5	10.5	18	6

Many types are available, special versions upon request!
For more information, please contact us!
