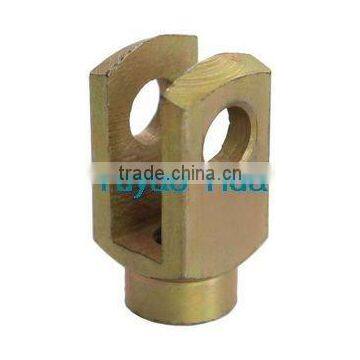

8-24mm 16x16 And 8T Yellow Zinc Plated Clevis With M8 for Gas Spring
US$ 0.182 - 0.248
/ Piece
5000 Pieces(Min. Order)
- Ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CL | |
| Model Number | CL03 |
Product Description
Specifications
1.Inner thread M82.clevis Bore eye Diam 8mm
3.Width between two eyes 8mm
4.gas spring clevis Effective length 24mm
8-24mm 16x16 and 8T yellow zinc plated Clevis with M8 for Gas spring
- We have attained ISO9001 certification and also have been audited by the SGS Group.
- Material: Low carbon steel or Mild stell, Q235.
- Surface protection: Yellow zice plating
- Optional: Electroplated, Phosphatized and oiled, galvanized in white or yellow or blue or black, passivated by chrome or nickle.
- A wide range of gas spring clevises in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.
More photos & Drawing ABOUT Gas Spring Clevis:
Clevis, Fork heads, U-fork (dimension in mm) | ||||||||||
Type | M | a1 | d1 | L1 | L2 | L3 | d3 | a2 | b | g |
CL01 | M6 | 10 | 5 | 26 | 20 | 7 | 9.5 | 10 | 5.5 | 9 |
CL02 | M6 | 10 | 5 | 26 | 20 | 7 | 9.5 | 10 | 5.5 | 9 |
CL03 | M8 | 16 | 8 | 34 | 24 | 7 | 14 | 16 | 8 | 15 |
CL04 | M8 | 16 | 8 | 42 | 32 | 12 | 14 | 16 | 8 | 16 |
CL05 | M8 | 16 | 8 | 42 | 32 | 12 | 14 | 16 | 8 | 16 |
CL06 | M8 | 16 | 8 | 42 | 32 | 12 | 14 | 16 | 8 | 16 |
CL07 | M10 | 20 | 12 | 40 | 28 | 3 | 18 | 20 | 10 | 20 |
CL08 | M10 | 20 | 12 | 49 | 37 | 4 | 18 | 20 | 8 | 28 |
Many types are available, special versions upon request!
For more information, please contact us!
