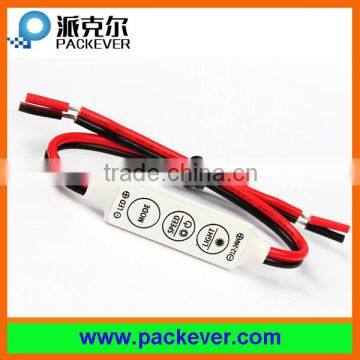

DC 5V-24V input three buttons mini LED dimmer controller

Parameter:

Working temperature: -20-60°C

Supply voltage: DC5-24V

Output: 1 channel

Connection mode: common anode

Controller dimension: L35.0 × W15.0 × H4.5mm

Packing size: L185 x W50 x H13.5mm

Net weight: 15.8g

Gross weight: 20.1g

Static power: <0.5W

Output current: <4A

Output power: 5V<20W, 12V < 48W, 24V < 96W

Button function:

MODE key: Switch to dynamic mode for the first time, and switch between the eight dynamic modes by every pressing.

LIGHT key: Press this key will switch to static color mode, and it is brightness+ key, long press in 1 second, the brightness will increase very fast.

SPEED key: Also called as adjustment key. At dynamic mode, it is speed key (10 levels). At static color mode, it is brightness- key (10 levels), turn it off after long pressing more than 1 second. Press any key can be turned on with power-fail memory.

 How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.

How to pay:
TT, Western Union, Paypal, Moneygram

How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!

Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
