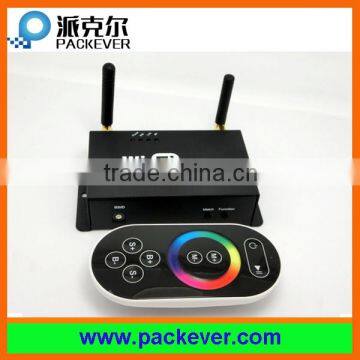

High quality 5-24V RGB strip light LED remote WiFi controller

1. Product constitute:

2. Product summarize:

   LED WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of

market and customer's demand, it is one type controller which integration the newest wifi technical in the market.

It makes the LED control more convenience, more hommization. We can use an Android system or IOS system

mobile phone to install control software, then it can control LED, this is the wishes of every customer.

Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building

can control more than 50m, in outdoor can control more than 100m.

In the condition of not use the mobile software, also can use the remote control to control, very convenience,

bring many choices for you.

3. Remote control technical parameters

    1:Working temperature:-20-60℃

    2:Power supply method:AAA*3

    3:Supply voltage:1.5V*3

    4:Standby power:0.015mW

    5:Standby current:3uA

    6:Working current:200uA

    7:Emission current:10mA

    8:Remote control distance:about 50m

    9:Standby time:6 month

4 Software technical parameters

    1:Name:Dream Color

    2:Runtime platform:Android version support Android system(better one can support Samsung, HTC),

         IOS version support IOS system, equipment must have WiFi function.

    3:Byte: Android version(622K),IOS version(581K).

    4:Language: English

    5:Category: communications

    6:Free, green, no plug-ins

5. Controller technical parameters

    1:Working voltage: DC5--24V

    2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

    3:Output current: 4A*3

    4:Connect mode: common anode

    5:External dimension: L107*W65*H30(mm)

    6:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)

How to order:
1. Contact our sales. Our sales will quote for you based on your requirements.
2. Send you proforma invoice to confirm.
3. After confirming your payment, we will arrange production.
4. Goods sent out.

How to pay:
TT, Western Union, Paypal, Moneygram

How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!

Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
