12V Addressable RGB Color Flexible DMX512 LED Strip
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
You May Like
Product Details
| LED Light Source | SMD5050 RGB | Type | Flex LED Strips | |
| Input Voltage(V) | DC24V | Lamp Power | 19.2W/M | |
| Lamp Luminous Flux(lm) | 20lm/LED | Color Temperature(CCT) | RGB | |
| Working Temperature(℃) | -30, 60 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | RGB | Place of Origin | Guangdong, China | |
| Brand Name | PACKEVER | Model Number | PK-FPCB-DMX512RGB30-12V |
Product Description

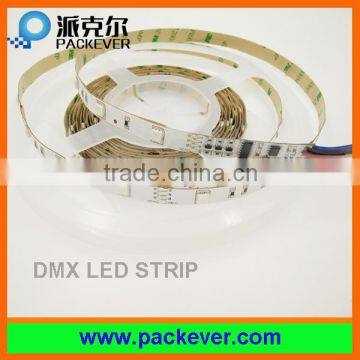

12V addressable RGB color flexible DMX512 LED strip
First address can be changed by our DMX writer
Product Name | 12V addressable rgb flexible dmx512 LED strip |
Item No. | PK-FPCB-DMX512RGB-30-12V |
Power Consumption | 7.2W/Meter |
Work Voltage | DC12V |
IC Type | DMX512 |
LED Qty per meter | 30pcs SMD5050, 10pixels/m |
PCB Color | Black/white/yellow |
Dimension | L 5000*W12*H3mm |
Waterproof Grade | IP40/IP65/IP67/IP68 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
12V Addressable RGB color flexible DMX512 LED strip Advantage:
1. Support standard dmx512 control system
2. Each group LED (1LED as one unit/group, cuttable) as one pixel, takes 3 channels (R/G/B each chip takes 1CH), can show customized color effects
12V Addressable RGB color flexible DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
GND: connect to power supply GND & controller GND
Other DMX512 LED strips can be available:
DC12V 30LEDs/m 12IC/m
DC5V 32LEDs/m 32IC/M
DC5V 34LEDs/m 34IC/m
DC24V 60LEDs/m 10IC/m
DC12V 72LEDs/m 24IC/m
...............................
We have more than 50 different items, if need more information, email or call us now! Accept customized design!
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
