60mm 18LEDs 24V 4.32W Programmable UCS2903 RGB Point Light
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
You May Like
-
DC12V 30mm UCS1903, WS2811, SM16703 SMD5050 RGB LED Pixel Module
-
DC12V 30mm 3LEDs SMD5050 RGB P9883 LED Point Light
-
30mm Waterproof 12V 0.72W Full Color RGB Programmable LED Pixel Module
-
Milk And Clear Cover, 30mm LED Pixel Module, 12V 0.72W IP68 Ws2811 LED Point Light
-
12V 3pcs SMD5050 RGB LED Programmable Ws2811 Led Pixel Module With Housing
-
New Coming DC5V 25mm 1LED RGB Ws2811, Sm16703, Ucs1903 LED Pixel Module
Product Details
| Emitting Color | Tri-Color(Red-Blue-Green) | Luminous Intensity | 2000-2500MCD per LED | |
| Luminous Flux(lm) | 6-7m per LED | Optical Attenuation(%) | 3% | |
| Power | Other | Power Dissipation | 4.32W | |
| Color Rendering Index(Ra) | 80% | Color Temperature | RGB | |
| Operating Temperature(℃) | -30, 60 | Storage Temperature(℃) | -10, 40 | |
| Place of Origin | Guangdong, China | Brand Name | PACKEVER | |
| Certification | CE |
Product Description

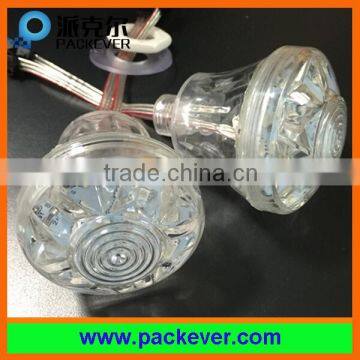

60mm 18LEDs 24V 4.32W programmable UCS2903 RGB point light
60mm 18LED full color LED pixel module, can show customized color effects, programmable, waterproof.
Product Name | 60mm 18LEDs 24V 4.32W programmable UCS2903 RGB point light |
Item No. | PK-FK6018-RGB-2903 |
Power | 4.32W/pcs |
Work Voltage | DC24V |
IC Type | UCS2903 |
LED Qty | 18pc |
PCB Color | White |
Installation hole | 20mm |
Waterproof | IP67 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
60mm 18LEDs 24V 4.32W programmable UCS2903 RGB point light Advantage:
1. Addressable, full color, each one can be controlled to show customized color
2. Can be connected by connector, easy to make operate
3. Rainproof, outdoor use
4. Beautiful shape
5. Use epistar chip LED to make sure long term use (if need other brand, please contact us)6. RGB and single color both available
60mm 18LEDs 24V 4.32W programmable UCS2903 RGB point light Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
GND: connect to power supply GND & controller GND
We have more than 50 different items, if need more information, email or call us now! Accept customized design!
Other Type Of pixel module light:
Burn-in test photos:
Automatic glue injection machines:
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
