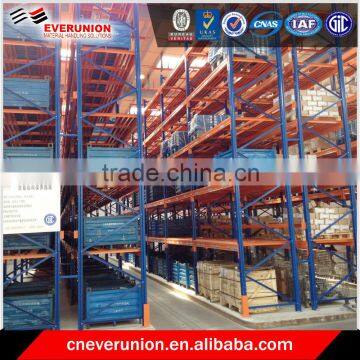

Heavy duty warehouse VNA very narrow aisle rack

FOB Price

USD $20 - $200 / Set

20 Sets(Min.Order)

Supply Ability 3000 Ton / Tons per Month
Port shanghai or customised
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Everunion VNA rack
Model Number	VNA rack	Type	Vna Pallet Rack
Material	Steel	Feature	Corrosion Protection
Use	Warehouse Rack	Certification	Other, ISO9001
Depth	800-2400mm	Weight Capacity	4000kg/level
Width	1200/1900/2300/2700/3300/3600(mm)	Height	2000mm-13000mm

Product Description

Heavy duty warehouse VNA very narrow aisle rack

1.VNA heavy duty rack:

1) This storage racking makes optimum use of floor area and roof height by providing high density storage

2) It still allows individual access to all pallets.

3) The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required.

4) Operator cabins may be elevating or static. Aisles are only marginally wider thean the handing equipment.

2.Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted

3.Everunion - Specificationsof pallet rack

Frame	Height (3-13m)	Depth (800-1,200mm)
	Upright section: 90 x 70; 100 x 90; 120 x80mm
	Thickness: 1.8/2.0/2.3/2.5mm
Beam	Length (1200-3600mm)
	Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50mm
	Thickness: 1.5mm
Load capacity	1-4Tons/Layer
Others	- MOQ. 20 sets - Pitch: 75 - Delivery time: 7-20days - Payment term. T/T (30% down payment) or L/C at sight - Necessary accessories: for free(bracing, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated - Production capacity: 3000T/month - Main market: more than 40countries, such as Australia, Europe, Asia, Central America, South America, North Africa and etc. - Available in various colors/specifications/sizes
