vna pallet racking system
- 1000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Everunion | |
| Type | Vna Pallet Rack | Material | Stainless Steel | |
| Feature | Corrosion Protection | Use | Warehouse Rack | |
| Certification | Other, ISO9001:2008 | Depth | 1.8-2.5MM | |
| Weight Capacity | 1-6TONS | Width | 800-1200MM | |
| Height | 2-15M |
Product Description
Specifications
1.High density.2.Maximising space use .
3.Special VNA forklift truck and guidance system
4.Material:Q235 b
Payment:T/T, L/C

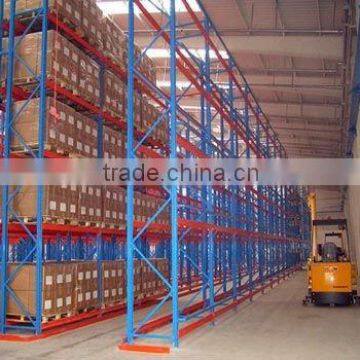

Narrow Aisle RackING
1.NAR makes optimum use of floor area and roof height by providing high density storage .
2. allows individual access to all pallets.
3. The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required.
4. Aisles are only marginally wider thean the handing equipment.
5. VNA trucks can operate at greater heights than conventional trucks up to 14m
Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted
EVERUNION——Professional Producer of Logistics Equipement | |||
UPRIGHT |
| BOX BEAM | |
Height(mm) | 3,000-15,000 | Length(mm) | 1,350-3,600mm |
Size(mm) | 90*70;100*90;120*80 | Size(mm) | 80*50;100*50;120*50;140*50;160*50mm |
Thickness (mm) | 1.8, 2.0, 2.3, 2.5mm | Thickness(mm) | 1.5mm |
Depth of frame(mm) | 800-1,200mm | Load capacity(kg/layer) | 1,000-4,000kgs |
Pitch(mm) | 75mm & 76mm | ||
Others | |||
Raw material | Bao steel SS400 & Ma steel SS400(high quality steel) | ||
