SSD Module 16GB MSATA SSD Hard Drive
- Shenzhen or HK
- T/T Credit Card PayPal
You May Like
-
KingFast 2.5 Inch Sata3.0 64Gb Ssd Drive
-
KingFast Sata3 MLC 2.5 Inch 64Gb Hard Disk Ssd
-
KingFast Internal Sata3 Ssd Drive 60Gb Hard Disk
-
Black Casing 16GB SSD 2.5" Solid State Drive
-
Kingfast 2.5" 1TB MLC SATAIII Hard Drive Deframmentare Disco
-
Kingfast High Speed 1TB MLC 2.5 Inch Recupero Dati Hard Disk Esterno
Product Details
| Products Status | Stock | Application | Desktop | |
| Type | Internal | Style | SSD | |
| SSD Capacity | 16GB | Size | Other, m-sata | |
| Interface Type | Other, sata 3.0 | Speed | Other, read 190mb/s write 35mb/s, read 190mb/s write 35mb/s | |
| Cache | Other, none | Brand Name | Kingfast | |
| Model Number | F2m-16GB | Place of Origin | Guangdong, China |
Product Description
1. Product Description

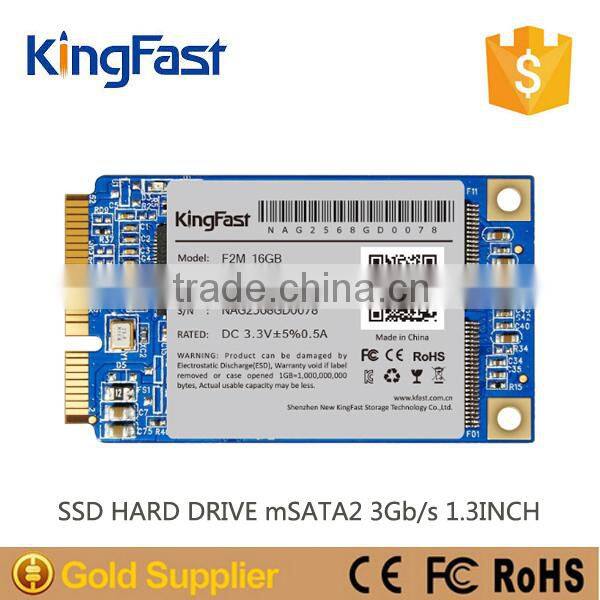

SSD Module 16GB mSATA SSD Hard Drive
Solid State Drives, or SSDs, are increasingly common in small form factor computing like notebooks and netbooks;
but SSDs are also used in the desktop and enterprise space by those looking leverage the speed of an SSD to get maximum performance. While solid state drives have several benefits, including speed, longevity and practically no noise output.
2. Product Specification
SSD Module 16GB mSATA SSD Hard Drive
Based spec | Interface | m-SATAII | |
Dimension | Option | 100*70*9.0 mm | |
100*70*7.0 mm | |||
Weight | 30~40G | ||
Capacity | 32GB | ||
SDram | None | ||
Flash type | Synchronous MLC NAND Flash | ||
Read/Write Performance | Sequential Read | Up to 190MB/s | |
Sequential Write | Up to 35MB/s | ||
4KB Sequential Read IOPS | 74212 | ||
4KB Sequential Write IOPS | 68870 | ||
4KB Random Read IOPS | 74764 | ||
4KB Random Write IOPS | 1555 | ||
Response Time | 0.1ms | ||
Power Consumption | Power Supply | 5V+5% | |
Standby | 0.3W | ||
4KB Random Write | 2W | ||
Reliability | Write endurance: 8 years @ 100G write/day(32G) | ||
Read endurance: unlimited | |||
MTBF: >2,000,000 hours | |||
Data retention: >20years @ 25°C | |||
Data destroy do not support | |||
Sudden power-off recovery support | |||
S.M.A.R.T,NCQ,Trim and dynamic power management support | |||
Static and dynamic wear-leveling | |||
Bad block management algorithm | |||
ECC: Supports BCH ECC 16 / 24 / 40 bits in 1024 bytes | |||
Environment | Storage temperature: -55~95 °C | ||
Operation temperature: Commercial | |||
Humidity: 5%~95% | |||
Vibration: 20G Peak, 10 ~ 2000Hz, (15mins/ Axis) x3 Axis | |||
Shock: 1500G (@0.5ms half sine wave) | |||
Warranty | 3 years | ||
3. Product Detail Photos
4. KingFast SSD Production Lines View
5. Quality Certificates
6. Shipment Services
7. Our International Exhibitions
8. Why Choose us?
a. We focus on SSDs Development
b. 6 product series to meet different market requirements
c. Much competitive prices provided from our own factory
d. Certified products & factory
e. Top quality products with 3 years warranty
f. One-stop purchasing with door to door service
More informaion, Just contact us now !
