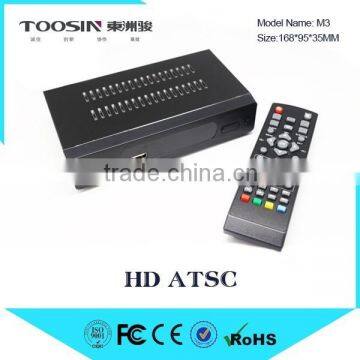

Factory Price HD ATSC Modulator,ATSC converter box transmitter tuner digital tv box,

Specification of HD ATSC Modulator : M3 :

Hardware
CPU: MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz
Memory : 32X16Mbit DDR2 Frequency1066
Flash: 32M bytes
Demodulator Type: MSB1237 Chip Set
TUNER: Rafael R836
USB 2.0: Embedded One Host,
Front Panel: 4-digit LED display on front panel
red LED Standby,green LED Lock

Rear Panel:
Tuner RF input connector: Standard ISO/IEC 13818-1; ARIB STB-B10
Tuner RF Loop through connector: loop through function
HDMI V1.3
AV RCA x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz

Demodulation:
Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
Guard Interval: 1/4,1/8,1/16,1/32,1/128
FFT Mode: 2K, 8K, 32K
RF input frequency: 54-803MHz
Bandwith: 6MHz
Input level: -83 - -5dBm

Sortware Features
•USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver
•Converts digital broadcast to your analog TV
•By remote control to choose the RF 3/4 ch output
•Sleep Timer
•Support teletext/subtitle/muti-language
•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder
Video Decoder:
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features
MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec JPEG, BMP, PNG

Multimedia License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.

Accessories:
Accessories gift box
AV cable optional
IR remote control
User Manual

1. What are my payment options?

 For samples, it is 100% in advance.

 For mass production, it is 30% in advance and 70% balance.

 Welcome West Union, TT. bank account and Paypal.

2. How long will it take to ship my order?

As long as there is stock available, Dongzhoujun usually ships items within 3 work days for samples and within two weeks for formal order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches our bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

3. What does your warranty cover?

Dongzhoujun’s product is backed by a 1 year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.

4. Who will pay the freight for repairing items?

Both parties will share half the freight: the buyer will take the freight of sending it back to us, while we will cover that of sending it back to the buyer. And we suggests to sending it back with the next mass production items.

If you would like to know more about our company, please contact us ASAP. We have professional sales staff could offer you the support at any time you need.
