CONTOR cold saw electric control system

Specifications

Detailed Product Description

 When under the synchronous rotation tracking mode, we can change the 5 group parameters below by man-machine interface touch screen.

1.       5 Groups Setting Length (mm)

2.       5 Groups Setting Quantity

3.       Zero Stability

4.       Synchronous Stability

5.       Cutting Drum Pulse Coefficient (mm / p)

6.       Tachometer Wheel Pulse Coefficient (mm / p)

7.       Simultaneously Shear Zone Angle (degrees)

8.       Ratio of Speed Up And Slow Down District Area (%)

9.       Acceleration (M/S2)

10.   Over speed Factors (%)

11.   Cutting-edge Perimeter (mm)

12.   Emulational Feeding Materials Speed (M/S)

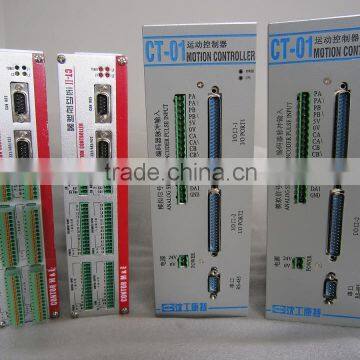

The Basic Configuration of the CT-01 Motion Controller

Processor: High speed DSP processor from American TI Company

Working: Independently work or serial communication with PC.

Encoder-One: Incremental encoder (5V), position and speed input, high speed optical isolation, orthogonal capture.

Encoder-Two: Incremental encoder (5V), position and speed input, high speed optical isolation, orthogonal capture.

Digital Input: 8-way optical isolation input, 1ms sample rate.

Digital Input: 8-way optical isolation input, drive relay, drive capability 24V, 100mA, can be chosen as LED display.

Serial Interface: RS485 is connected by nine-needle D-type plug, can be chosen as PC interface, or HMI interface.

Mode Output: Two-way high speed optical isolation mouth Bit 12, D/A delivery outlet, ±10V

Pulse Output: As PWM timing output, or position pulse output, optical isolation two-way output.

Reset: Hardware reset terminal mouth

Power Requirements:  24V  500mA

Ambient Temperature: Ambient temperature 55°C with no fan.
