Concrete Batching Machine on Sale

FOB Price

US$ 1,000 - 3,500 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Guangzhou
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Pioneer	Model Number	PLD800Concrete Batching Machine on Sale
Voltage	380V	Power(W)	3*3kw
Dimension(LWH)	64001600 3000mm	Weight	2300kg
Certification	CE	Warranty	Over 12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Concrete Batching Machine on Sale
1.Capacity of weighing hopper:0.8m3
2.Productivity:48m3/h
3.Max. weighing value:1500kg

Concrete Batching Machine on Sale

Definition of Concrte Batching Machine on Sale
PLD series concrete Batching Machine is a kind of sandstone proportioning and batching device, and it adopts lifting hopper or belt conveyor to supply material to the mixer. Concrete batching machine can mix more than three kinds of material. The aggregate ingredient system may be equipped with 2-5 aggregate storage bins and can automatically finish the batching procedures of materials such as sand, stone, cement, according to users' demand.

If PLD concrete batching machine combines with various types of mixers and other metering devices, then different types of concrete mixing plants can be formed.

Features of Concrete Batching Machine on Sale
This series concrete batching machine adopts electronic weighing, computer control, digital display, wired remote control operation, which will effectively guarantee the mixing accuracy of cement, sand and stone, greatly reduce labor intensity of the feeding part and improve the quality of concrete mixture ratio, etc.. In addition, PLDconcrete batching plant has excellent sealing performance and no leakage. So PLD concrete batching plant is an ideal batching equipment for various kinds of concrete mixing plants.

Usages of Concrete Batching Machine on Sale
Ordinary construction sites, roads, bridges, etc..

Technical Parameters of Concrete Batching Machine on Sale

Main Technical Specifications
Model	PLD800	PLD800S	PLD1200Ⅰ	PLD1200Ⅱ	PLD1200Ⅲ	PLD1600Ⅰ	PLD1600Ⅱ
Capacity of weighing hopper	0.8m³	0.8m³	1.2m³	1.2m³	1.2m³	1.6m³	1.6m³
Capacity of storage hopper	2×2m³	2*2m³	2*2.2m³	3*2.2m³	4*2.2m³	3*3.7m³	4*3.7m³
Productivity	48m³/h	48m³/h	60m³/h	60m³/h	60m³/h	80m³/h	80m³/h
Batching accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Max. weighing value	1500kg	1500kg	1500kg	1500kg	1500kg	1500kg	1500kg
Batching number of aggregates	2	2	2	3	4	3	4
Lifting height	3000	3000	3000	3000	3000	3000	3000
Speed	1.25m/s	1.25m/s	1.25m/s	1.25m/s	1.25m/s	1.25m/s	1.25m/s
Power	*33kw**	3*3kw	3*3kw	4*3kw	5*3kw	4*3kw	5*3kw
Weight	2300kg	2500kg	2900kg	3900kg	4900kg	4750kg	5750kg
*Dimensions (LWH)mm*	*64001600* 3000**	64001600 3000	64002000 3200	96002000 3200	129162000 3200	96002000 3200	129162000 3200

More informations about the related products please click our website:

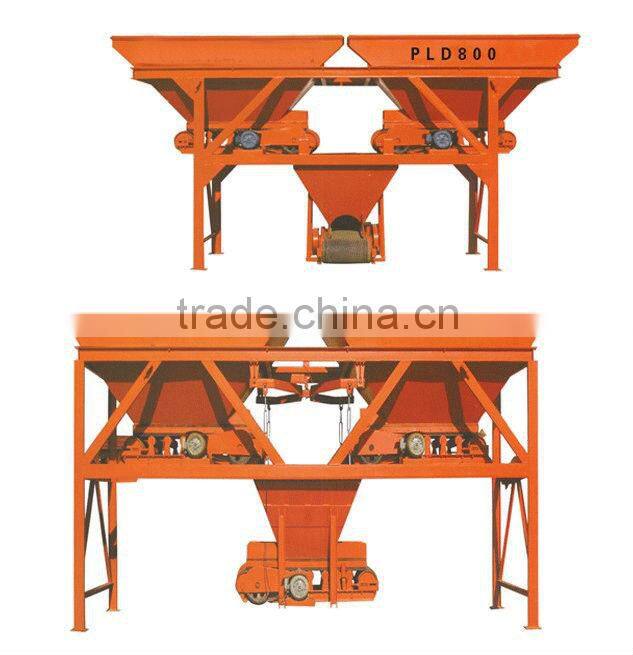

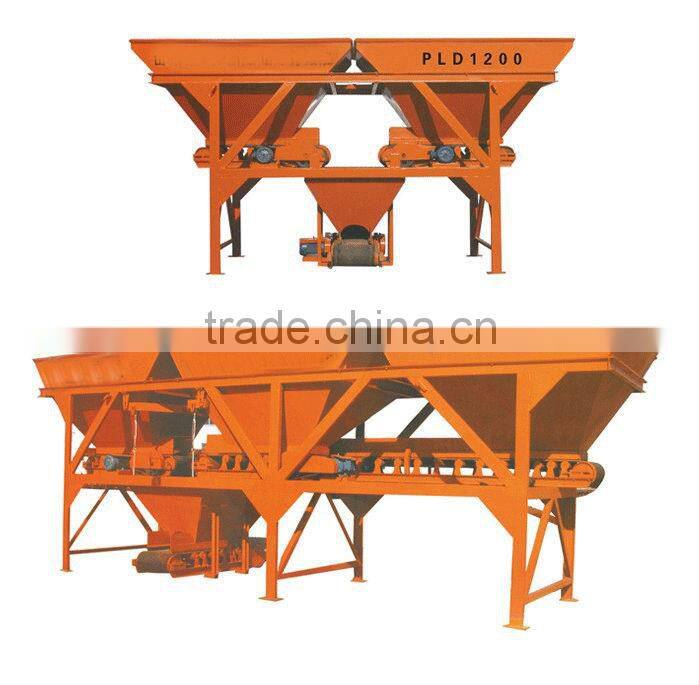

Pictures of Different series PLD Concrete Batching machine on Sale
