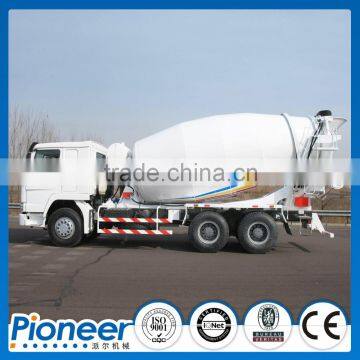

China Manufacturer Howo Chassis Concrete Mixer Truck 5m3-16m3 for Sale
USD $60,000 - $65,000
/ Unit
1 Unit(Min.Order)
- 350 Unit / Units per Month
- China
- T/T
You May Like
-
10 Cubic Meters Concrete Mixer Truck With Best Price for Sale
-
High Quality Concrete Mixer Truck in Good Condition for Sale
-
Diagram of 9 Cubic Meters Concrete Mixer Truck For Sale
-
Low Price High Quality Mobile Concrete Mixer Truck
-
Factory Price Concrete Mixer Truck Dimensions
-
Energy Saving Sany Concrete Mixer Truck Price
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Pioneer | Model Number | HDT5259GJB Cement Mixing Truck 9m3 | |
| Weight | 13T, 13205(kg) | Dimension(L*W*H) | 9200mm*2490mm*3800mm | |
| Power(W) | 247kw | Certification | CCC/ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China Manufacturer Howo Chassis Concrete Mixer Truck 5m3-16m3 for Sale
Feature of Diagram of China Manufacturer Howo Chassis Concrete Mixer Truck 5m3-16m3 for Sale
1. The hydraulic system adopts Germany Rexroth, Italy ARK, America Sauer;
2. Double screw blades make sure the concrete mix very thoroughly and continuous discharge and not segregation;
3. The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;
4. With the minor angle inclination, the gravity of the whole truck is low and stable;
5. Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
6. With the discharge downspouting to pave the way for the quick and clean discharging;
7. The optimized design of mixing drum and no dead angles to ensure the concrete residue ratio is less than 1%;
8. With the pedal, security barrier and anti-skid design to ensure personal safety;
Technical Parameter of China Manufacturer Howo Chassis Concrete Mixer Truck 5m3-16m3 for Sale
| Model | SDX52 53GJB | SDX5 254GJB | SDX5 255GJB | SDX5 256GJB | SDX52 58GJB | SDX53 11GJB | SDX53 12GJB | |
| Operation Data | Geometric volume of mixing drum (m3) | 16.2 | 13.4 | 13.4 | 13.4 | 14.9 | 18.47 | 20.81 |
| Mixing volume (m3) | 10 | 8 | 8 | 8 | 9 | 12 | 14 | |
| Stuffing rate(%) | 61.7% | 59.7% | 59.7% | 59.7% | 60.4% | 65% | 57.7% | |
| Remains(%) | <1 | <1 | <1 | <1 | <1 | <1 | <1 | |
| Rotate speed of mixing drum (r/min) | 1~14 | 1~14 | 1~14 | 1~14 | 1~14 | 1~14 | 1~14 | |
| Obliquity of mixing drum(°) | 11.5 | 13 | 13 | 13 | 12 | 12 | 10 | |
| Overall dimen sion(mm) | 9400x2500 x3850 | 8650x2500 x3780 | 8204 x2496 x3850 | 8204x 2496 x3850 | 8950x 2500 x3945 | 8950x 2500 x3945 | 11150x 2495 x3998 | |
| Weight(kg) | 13205 | 12605 | 12800 | 12800 | 13100 | 14700 | 15400 | |
| Way of water supply | Water pump | Water pump | Water pump | Water pump | Water pump | Water pump | Water pump | |
| Water tank capacity(L) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | |
| Reduction gearbox | From Italy | From Italy | From Italy | From Italy | From Italy | From Italy | From Italy | |
| Hydraulic pump | EATON /5423-518 Italy ARK / PV89 MHR20 | EATON /5423-518 Italy ARK / PV89 MHR20 | Rexroth A4VTG90/ EATON/5423-518 Italy ARK / PV89MHR20 | Rexroth A4VTG90/ EATON/6423-279 Italy ARK / PV89MHR20 | ||||
| Motor | EATON /5433-138 Italy ARK / MF89V20 | EATON /5433-138 Italy ARK / MF89V20 | Rexroth AA2FM80/ EATON/5433-138 Italy ARK / MF89V20 | Italy AA2FM90/ EATON/6433-042 Italy ARK / MF89V20 | ||||
| Chassis parameter | Series | HOWO-7 | STRW | HOWO-7 | HOWO-7 | AUMAN | HOWO-7 | HOWO-7 |
| Model | ZZ1257 N3847C | ZZ1256 N3246C | ZZ1257 M3247C | ZZ1257 N3247C | BJ5257 GMPJB-S | ZZ1317 N3268W | BJ5313 GPF JC-S | |
| Wheel base(mm) | 3825+1350 | 3225+ 1350 | 3225 +1350 | 3225+ 1350 | 3575 +1350 | 1800+ 3200 +1350 | 1800+ 3450 +1350 | |
| Motor model discharge(L) | WD61 5.95E(9.726) | WD615. 95E (9.726) | WD61 5.95E (9.726) | WD615. 93E (9.726) | WP10 .336 | WD 615.95E (9.726) | WD6 15.96E (9.726) | |
| Output power/rotate speed (kW/RPM) | 247/ 2200(336hp) | 247/2200 (336hp) | 247/ 2200 (336hp) | 213/2200 (290hp) | 247/2200 (336hp) | 247/ 2200 (336hp) | 276/ 2200 (375hp) | |
| Max. speed(km/h) | 90 | 75 | 90 | 90 | 81 | 86 | 77 | |
