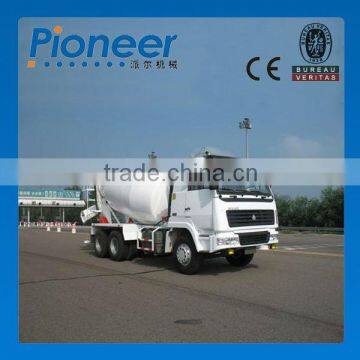

Widely used Concrete Mixing Carrier Concrete Mixer Truck

FOB Price

USD $60,000 - $65,000 / Unit

1 Unit(Min.Order)

Supply Ability 350 Unit / Units per Month
Port Qingdao Port
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Pioneer	Model Number	SH5253GJB
Weight	25000kg, 13205(kg)	Dimension(LWH)	8555mm2490mm3800mm
Power(W)	247kw	Certification	ISO9001:2008
Warranty	12 Months	After-sales Service Provided	Overseas service center available

Product Description

Feature of cement batch mixer

1. The hydraulic system adopts Germany Rexroth, Italy ARK, America Sauer;
2. Double screw blades make sure the concrete mix very thoroughly and continuous discharge and not segregation;
3. The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;
4. With the minor angle inclination, the gravity of the whole truck is low and stable;
5. Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
6. With the discharge downspouting to pave the way for the quick and clean discharging;
7. The optimized design of mixing drum and no dead angles to ensure the concrete residue ratio is less than 1%;
8. With the pedal, security barrier and anti-skid design to ensure personal safety;

Technical Parameter of Concrete Mixer Truck

Model		SH52 53GJB	SH5 254GJB	SH5 255GJB	SH5 256GJB	SH52 58GJB	SH53 11GJB	SH53 12GJB
Operation Data	Geometric volume of mixing drum (m3)	16.2	13.4	13.4	13.4	14.9	18.47	20.81
	Mixing volume (m3)	10	8	8	8	9	12	14
	Stuffing rate(%)	61.7%	59.7%	59.7%	59.7%	60.4%	65%	57.7%
	Remains(%)	<1	<1	<1	<1	<1	<1	<1
	Rotate speed of mixing drum (r/min)	1~14	1~14	1~14	1~14	1~14	1~14	1~14
	Obliquity of mixing drum(°)	11.5	13	13	13	12	12	10
	Overall dimen sion(mm)	9400x2500 x3850	8650x2500 x3780	8204 x2496 x3850	8204x 2496 x3850	8950x 2500 x3945	8950x 2500 x3945	11150x 2495 x3998
	Weight(kg)	13205	12605	12800	12800	13100	14700	15400
	Way of water supply	Water pump	Water pump	Water pump	Water pump	Water pump	Water pump	Water pump
	Water tank capacity(L)	250	250	250	250	250	250	250
	Reduction gearbox	From Italy	From Italy	From Italy	From Italy	From Italy	From Italy	From Italy
	Hydraulic pump	EATON /5423-518 Italy ARK / PV89 MHR20	EATON /5423-518 Italy ARK / PV89 MHR20	Rexroth A4VTG90/ EATON/5423-518 Italy ARK / PV89MHR20			Rexroth A4VTG90/ EATON/6423-279 Italy ARK / PV89MHR20
	Motor	EATON /5433-138 Italy ARK / MF89V20	EATON /5433-138 Italy ARK / MF89V20	Rexroth AA2FM80/ EATON/5433-138 Italy ARK / MF89V20			Italy AA2FM90/ EATON/6433-042 Italy ARK / MF89V20
Chassis parameter	Series	HOWO-7	STRW	HOWO-7	HOWO-7	AUMAN	HOWO-7	HOWO-7
	Model	ZZ1257 N3847C	ZZ1256 N3246C	ZZ1257 M3247C	ZZ1257 N3247C	BJ5257 GMPJB-S	ZZ1317 N3268W	BJ5313 GPF JC-S
	Wheel base(mm)	3825+1350	3225+ 1350	3225 +1350	3225+ 1350	3575 +1350	1800+ 3200 +1350	1800+ 3450 +1350
	Motor model discharge(L)	WD61 5.95E(9.726)	WD615. 95E (9.726)	WD61 5.95E (9.726)	WD615. 93E (9.726)	WP10 .336	WD 615.95E (9.726)	WD6 15.96E (9.726)
	Output power/rotate speed (kW/RPM)	247/ 2200(336hp)	247/2200 (336hp)	247/ 2200 (336hp)	213/2200 (290hp)	247/2200 (336hp)	247/ 2200 (336hp)	276/ 2200 (375hp)
	Max. speed(km/h)	90	75	90	90	81	86	77

Packaging & Shipping

Packing:Standard Export Packing

Shipping:delivery within 15 working days

Our Services

1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
