high quality Hot Sale Conveying Belt Cement Batching Plant HZS60 With PLD1600 Price

FOB Price

USD $80,000 - $90,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Henan, China	Brand Name	Pioneer
Model Number	HZS60	Power(W)	121KW
Dimension(LWH)	46000X21000X13000mm	Weight	51T
Certification	CE&ISO9001:2008	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

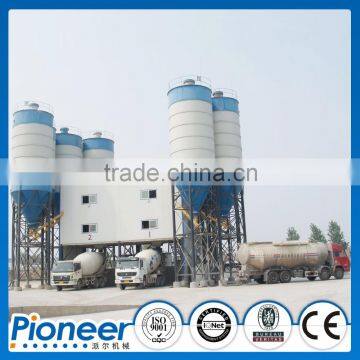

Hot Sale Conveying Belt Concrete Batching Plant HZS60

Belt type concrete batching plant is continuous forced concrete batching station, which is comprised of six major systems. Six major systems include: mixing system, weighing and control system, cement system, aggregate feeding system, aggregate batching system, control system.

Details about six major systems:
1. Mixing system of belt type cement batching plant: the mixer of concrete batching plant uses JS series horizontal double shaft concrete mixer for high quality of mixing, short mixing time and long service life.
2. Weighing and control system of concrete batching plant: it adopts new-deign electrical weighing system and is equipped with buffered device and auto-add function to make sure the accuracy and timeliness of measurement.
3. Cement system of cement batching plant: it used for plated cement silo and screw conveyor, which is easy to install and has well seal performance and long service life. The cement is transited from cement silo to mixer through screw conveyor.

From the start to the end of production: batching, mixing, propulsion and discharging is continuous.

Type	Productivity(m3/h)	Type of mixer	Volume of mixer(m3)	Batching machine	Batching accuracy(%)				Discharging height(m)
Type	Productivity(m3/h)	Type of mixer	Volume of mixer(m3)	Batching machine	Aggregate	Water	Cement	Additive
HZS60	60	JS1000	1	PLD2400	≤± 2	≤±1	≤±1	≤±1	3.8
HZS90	90	JS1500	1.5	PLD2400	≤± 2	≤±1	≤±1	≤±1	3.8
HZS120	120	JS2000	2	PLD3200	≤± 2	≤±1	≤±1	≤±1	3.8
HZS150	150	JS3000	3	PLD4800	≤± 2	≤±1	≤±1	≤±1	3.8
HZS180	180	JS3500	3.5	PLD4800	≤± 2	≤±1	≤±1	≤±1	3.8
